AEM SM100 - Dimensions

Technical Data
10.11 Dimensions
114
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
Thread Size x Pitch mm M6 x 1.0 M8 x 1.25 M10 x 1.5 M12 x 1.75 M14 x 1.5 M16 x 1.5
Tightening torque in. lbs. 96.0 ± 9.0 — — — — —
ft. lbs. — 19.0±2.0 36.0±4.0 65.0±7.0 101.0±7.0 167.0±7.0
Nm 10.8 ± 1.0 25.5 ± 2.9 49.0 ± 4.9 88.3 ± 9.8 137.0 ± 9.8 226.0 ± 9.8
kgf m 1 .1 ± 0.1 2.6 ± 0.3 5.0 ± 0.5 9.0 ± 1.0 14.0 ± 1.5 23.0 ± 2.0
10.11 Dimensions

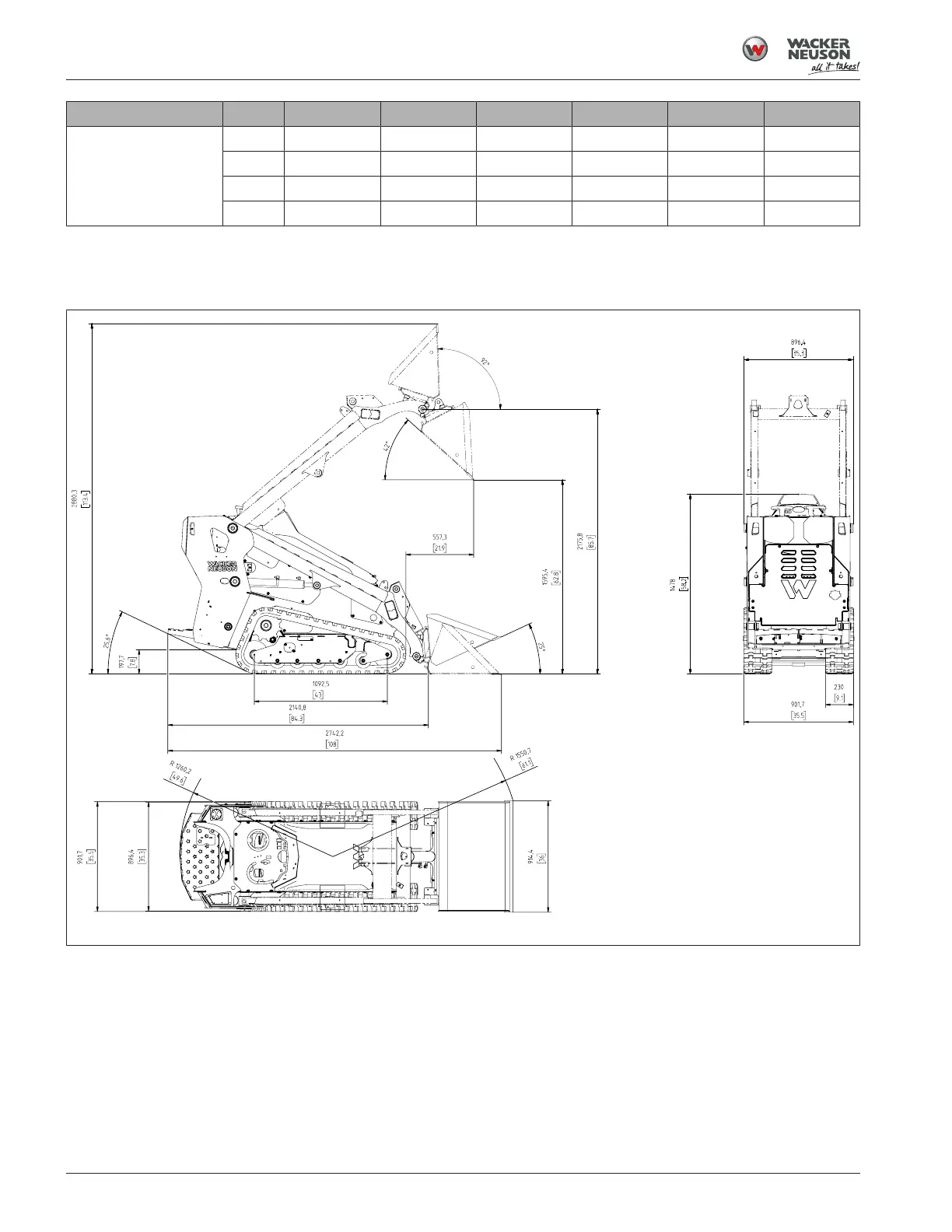

Fig.93: SM100 dimensions
