Operation

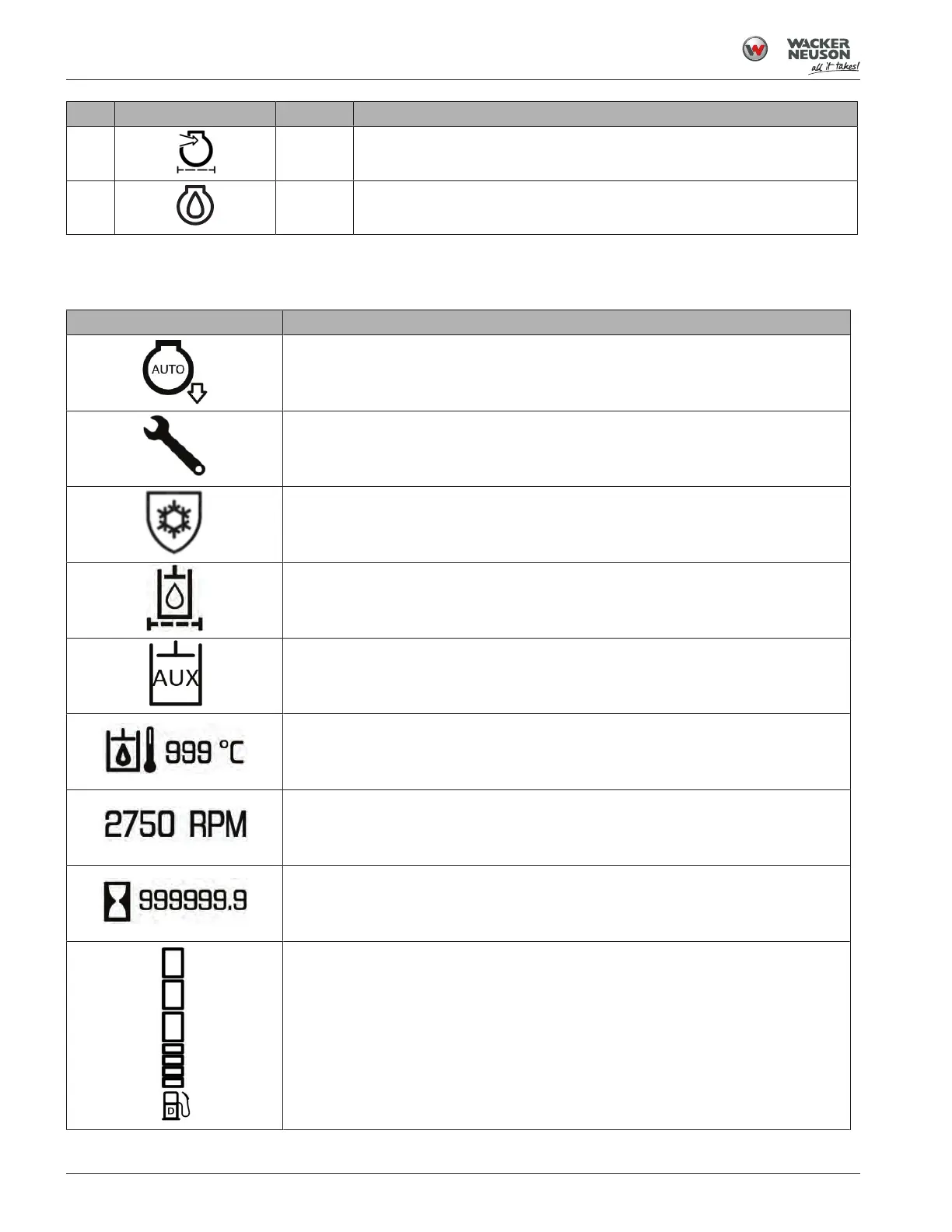

6.10 Instrument Display Symbols and Functions
46
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
Ref
Symbol
Color
Function
17
Red
Air filter restriction
18
Red
Engine oil pressure
6.10
Instrument Display Symbols and Functions
Symbol
Function
Auto idle
Service wrench
Cold system restriction warning
Hydraulic oil filter clogged
Auxiliary continuous flow active
Hydraulic oil temperature
Engine speed
Elapsed operating hours meter
Fuel level
45
47
