Operation
Lift Arm Support Device 6.27
65
[en-US] | 08/2022 | 5100064108 | SM100 | Operator’s Manual
2. Turn the ignition key to Position 1.
3. Press and hold the parking brake switch.
4. Push the right joystick forward to lower the lift arm.

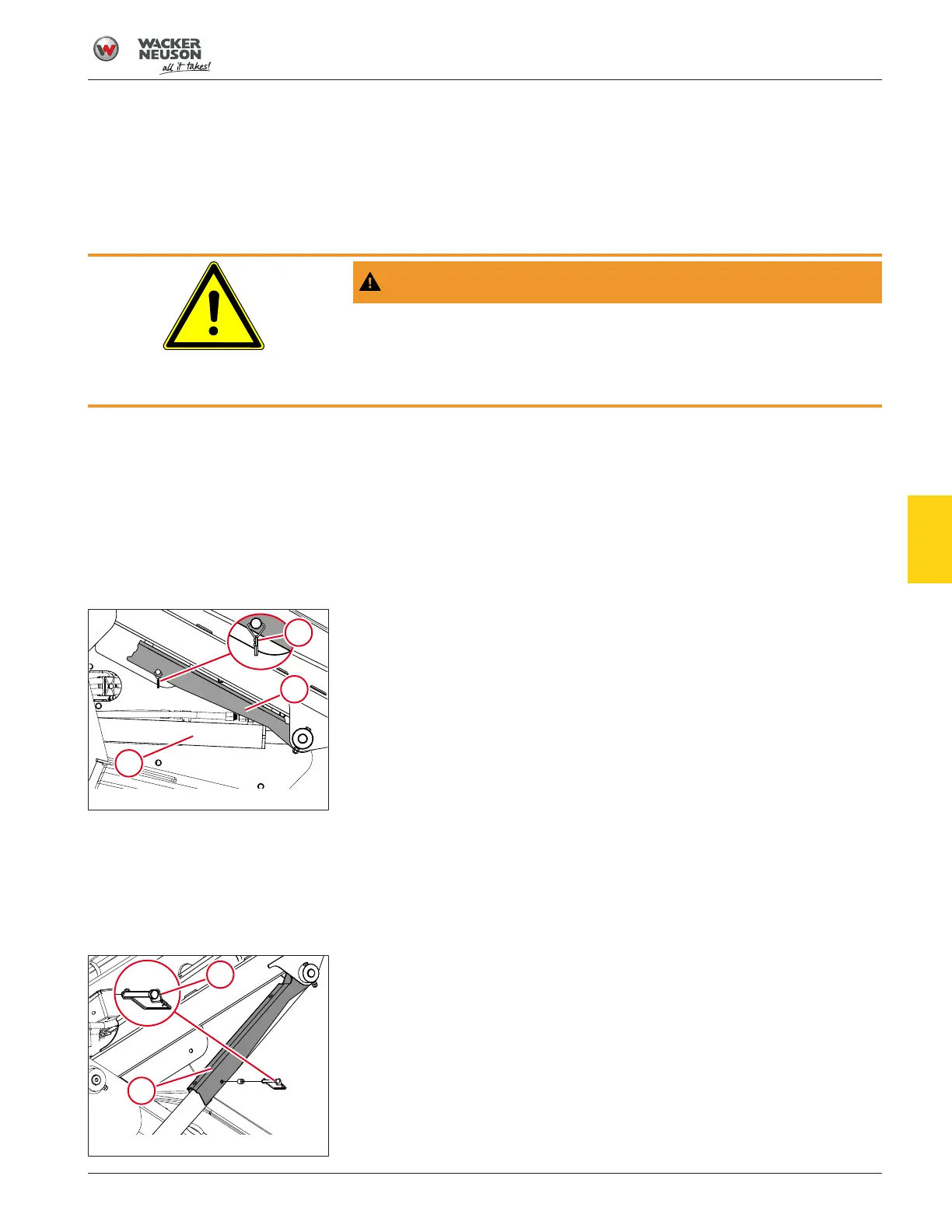

6.27 Lift Arm Support Device
WARNING
Crushing hazard
A disconnected hydraulic line can result in the lift arm dropping, resulting in
serious injury or death.
► Secure the lift arm support device before working under a raised lift arm.
Maintaining the lift arm support device
Every 250hours, check the lift arm support device for damage, such as
cracking, bending, or excessive rust.
Installing the lift arm support device
1. Lower the lift arm to the ground and remove the attachment.
2. Stop the engine and step off the operator platform.
Fig.49: Lift arm support device
3. Remove the pin(1) from the lift arm support device(2) and lower the lift
arm support device onto the lift cylinder(3).
4. Step onto the platform and start the engine.
5. Raise the lift arm until the lift arm support device drops down over the
lift cylinder.
6. Lower the lift arm onto the lift arm support device.
7. Stop the engine and step off the platform.
8. Install the pin to prevent the lift arm support device from moving up-
ward.
Removing the lift arm support device
1. Start the engine and raise the lift arm to the maximum height.
2. Stop the engine and step off the operator platform.
Fig.50: Install pin
3. Remove the pin(1) from the lift arm support device(2).
4. Raise the lift arm support device to its storage position and insert the
pin.
5. Step onto the platform and start the engine.
6. Slowly lower the lift arm to the ground.
7. Stop the engine and step off the platform.
