Checking the Undercarriage 7.18
89
[en-US] | 08/2022 | 5100064108 | SM100 | Operator’s Manual

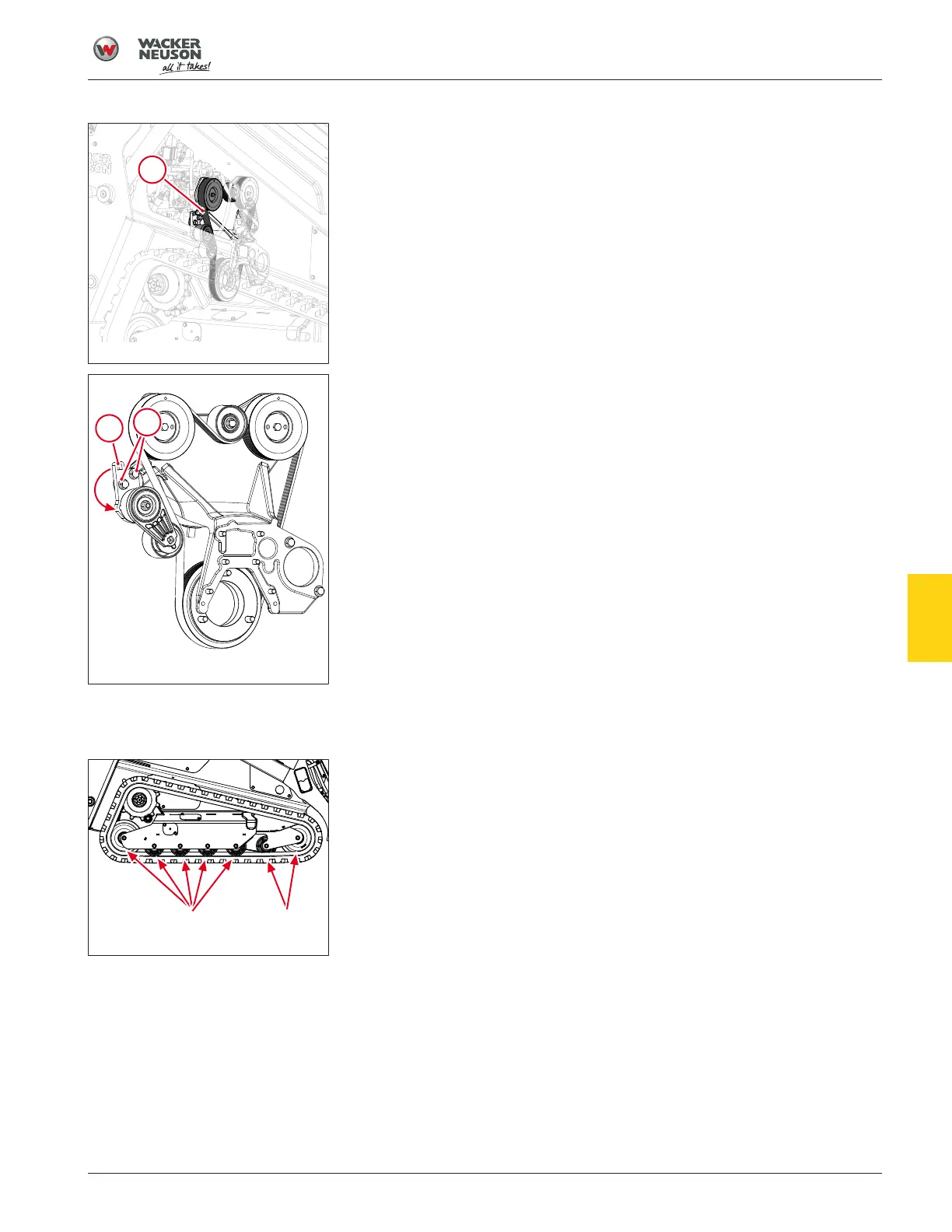

Fig.77: Hydrostatic belt
Checking the hydrostatic drive belt
Over the life of the machine, the hydrostatic drive belt (1) will stretch in
length and need to be adjusted. The hydrostatic drive belt may also slip dur-
ing high hydraulic load events.
In these cases, follow the procedure below to add tension to the belt:
1. Raise the lift arm and install the lift arm support device. For further in-
formation, see Lift Arm Support Device on page 65.
2. Remove the right side panel.
Fig.78: Hydrostatic belt adjustment
3. Loosen but do not remove the two screws (2) securing the tensioner.
4. Using a standard 3/8 in. socket driver, rotate the adjustable tensioner
spacer(3) counterclockwise until the end of travel is reached.
5. While holding the tensioner spacer in place, retighten the screws.
7.18 Checking the Undercarriage
Fig.79: Undercarriage bolts
When
Every 50 hours
Procedure
• Check for loose bolts and nuts as shown. For standard torque specifica-
tions, see Tightening Torques on page 113.
• Check the condition of the cotter pin on the sprocket castle nut.
