Chapter 2 Dispensing to SpectroCHIP Arrays 45
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Loading the
SpectroCHIP Arrays
SpectroCHIP Arrays are placed in a standard SCOUT plate.
To load SpectroCHIP Arrays:
1. If the SCOUT plate is on the processing deck, remove it by pulling the spring-loaded
positioners away from the plate, then lifting the plate off the deck.
.
2. Orient the SCOUT plate so that the beveled corners are at the right (Figure 2.38).
3. Insert the SpectroCHIP Arrays into the SCOUT plate positions that were specified
earlier (see page 34). Orient the SpectroCHIP Arrays so that the Agena Bioscience
logo is at the bottom (Figure 2.38).
CAUTION
!
Do not touch the SpectroCHIP Array surface. Handle a SpectroCHIP Array only by the edges. It is
strongly recommended that you use tweezers to handle the SpectroCHIP Arrays.
4. Make sure each SpectroCHIP Array is seated flat in its position and flush with the
lower-left corner.

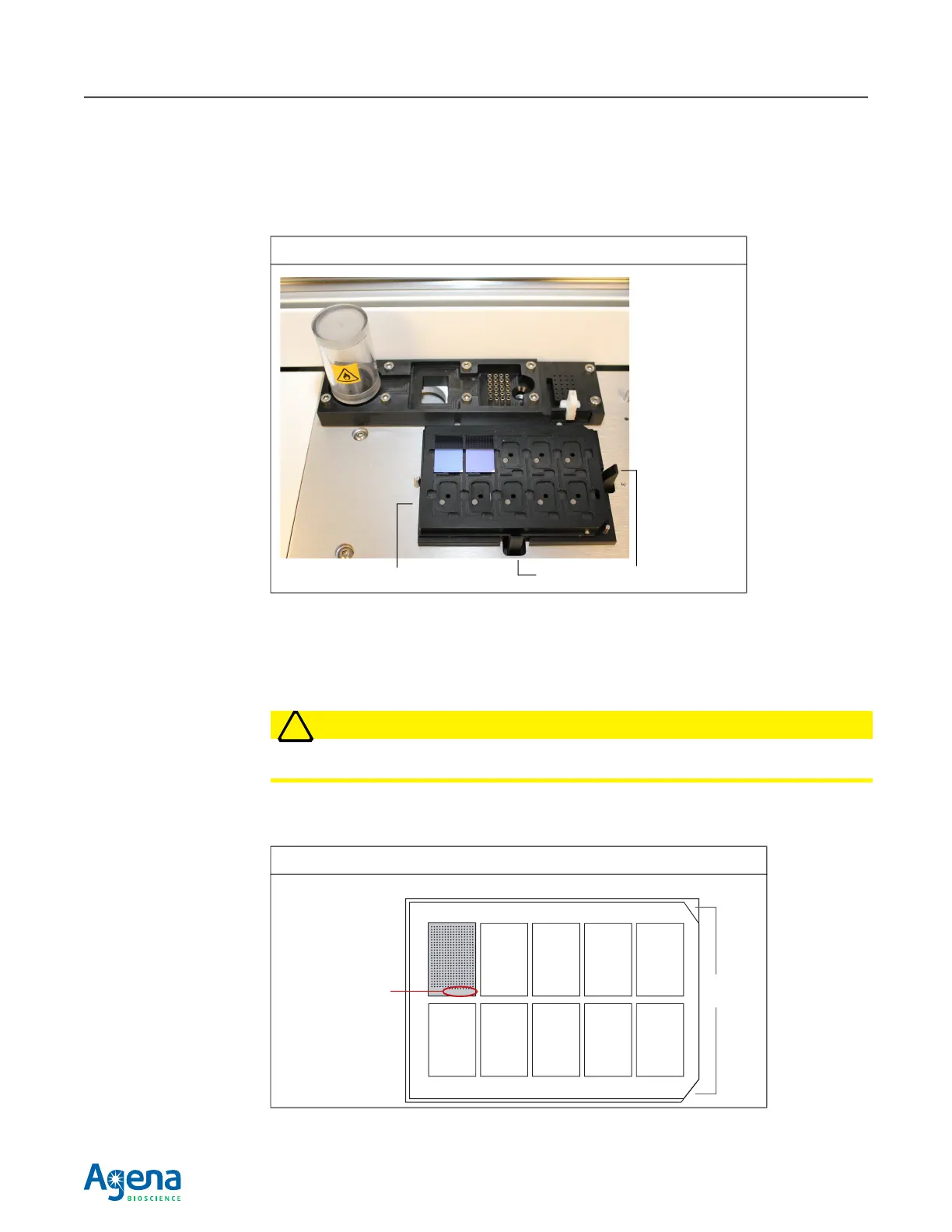

Figure 2.37 SCOUT Plate Location on the Nanodispenser RS1000 Deck
Figure 2.38 Orient the SCOUT Plate
Spring-loaded positionersSCOUT plate
$*(1$
2345
67 8 910
Beveled
corners
Agena Bioscience
logo
