Chapter 2 Dispensing to SpectroCHIP Arrays52
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Volume tab
The Volume tab (Figure 2.49) shows the dispense volume and a photo of each dispensed
pad.
Tuning tab
The Tuning tab (Figure 2.50) shows a graph of dispense volume and speed.

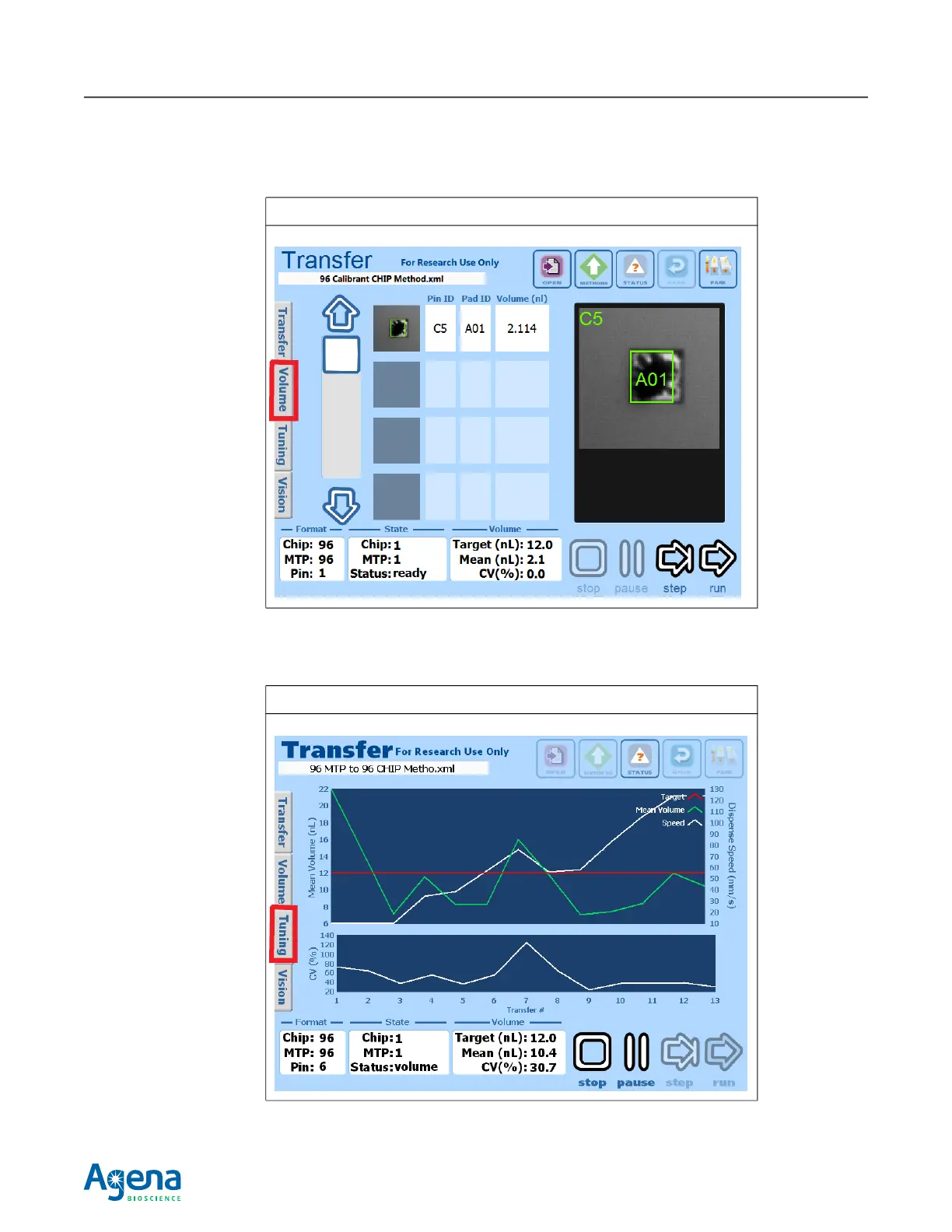

Figure 2.49 Transfer Screen (Volume Tab) During Transfer
AA
Figure 2.50 Transfer Screen (Tuning Tab) During Transfer
AA
