2.7 Setting up the instrument deck
Filling the calibrant
reservoir
NOTENOTE
If you are not dispensing calibrant, skip this section and proceed to Loading the microtiter plates,
page 44
The calibrant reservoir is a single-well insert located on the dry station. The instrument
aspirates calibrant from this reservoir.
To fill the calibrant reservoir:
1. Allow the iPLEX or MassCLEAVE calibrant to equilibrate to room temperature for 5
minutes (if it has been refrigerated) or 10 minutes (if it has been frozen).
2. Tap the PARK button to park the pin array assembly.
The pin array assembly moves to allow access to the processing deck.
3. Open the main door.
The safety interlock is disengaged! message appears.
4. Fill the calibrant reservoir with 60 L of calibrant using a pipette.
NOTENOTE
When filling the calibrant reservoir, be sure to insert the pipette tip to the bottom of the reservoir
well. Otherwise, some of the calibrant may adhere to the sides of the reservoir rather than collect
at the bottom of the well.

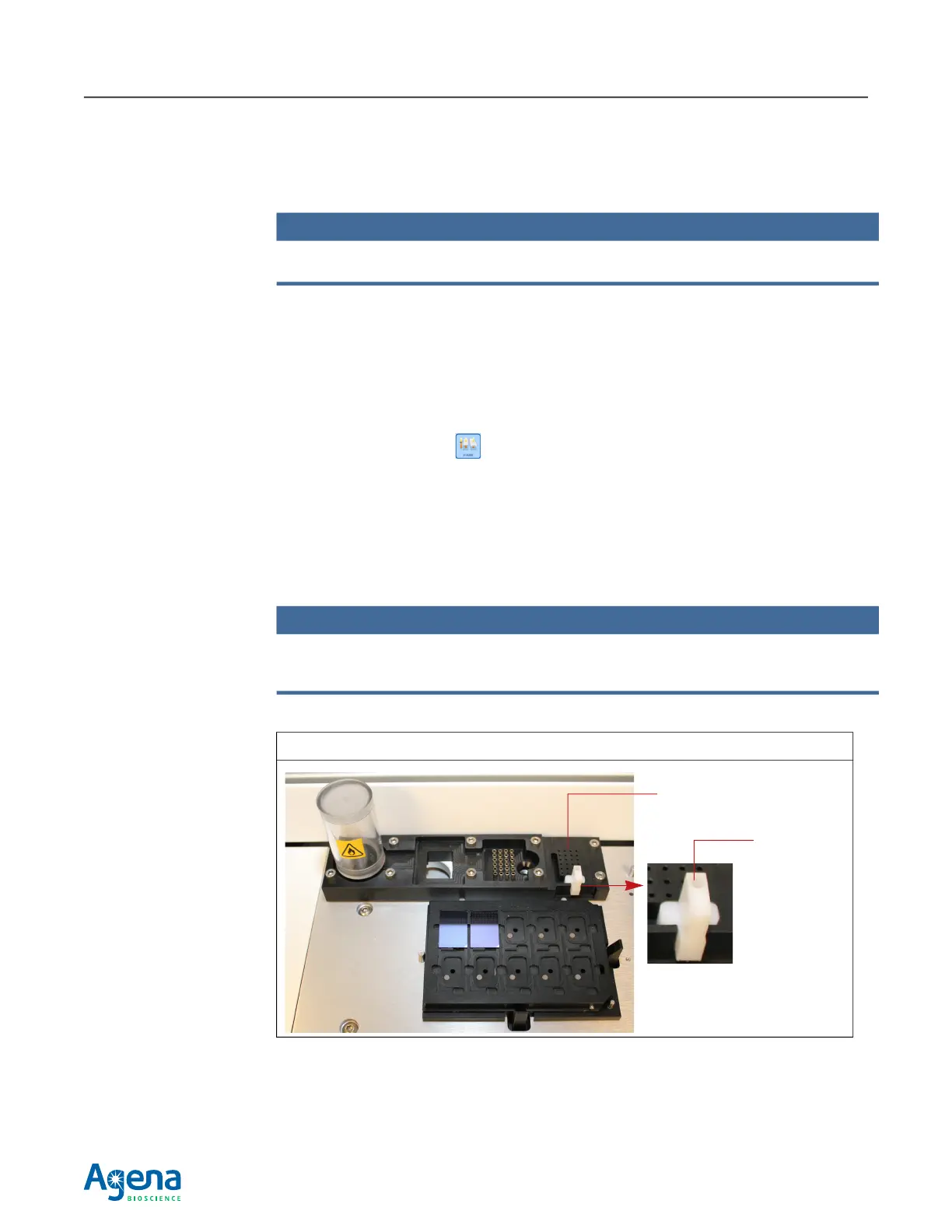

Figure 2.35 Calibrant Reservoir
Calibrant
reservoir
Add calibrant
to this well
Dry station
