Repairing the Autosampler
Needle-Drive Motor and Belt

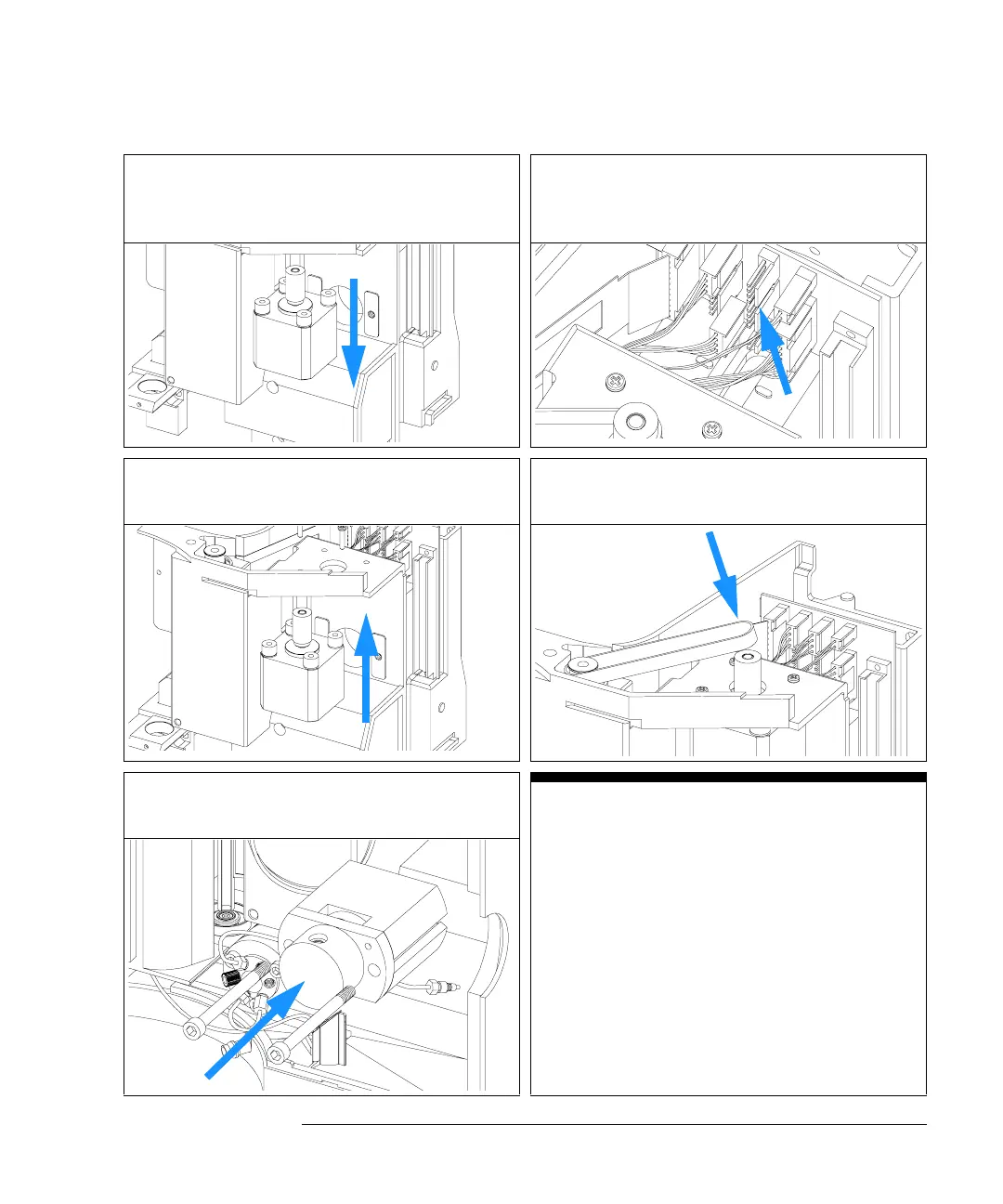

17 Remove the four fixing screws, and remove
the motor.
18 .Feed the motor cable through to the SUD
board. Connect the cable to the connector,
labelled “Needle M”.
19 Secure the motor in place with the four fixing
screws.
20 Install the belt.
21 Install the metering-head assembly (see
“Gripper Arm” on page 123).
On completion of this procedure:
❏ Install the top cover (page 128).
❏ Verify the transport assembly alignment
(page 99).
