Repairing the Autosampler
SUD Board
4 Secure the board in place with the two
screws.
5 Reconnect all the connectors to the new
board.
On completion of this procedure:
❏ Install the sampling unit (page 134).
❏ Install the transport assembly (page 132).
❏ Install the top cover (page 128).
❏ Verify the transport assembly alignment (page 99).

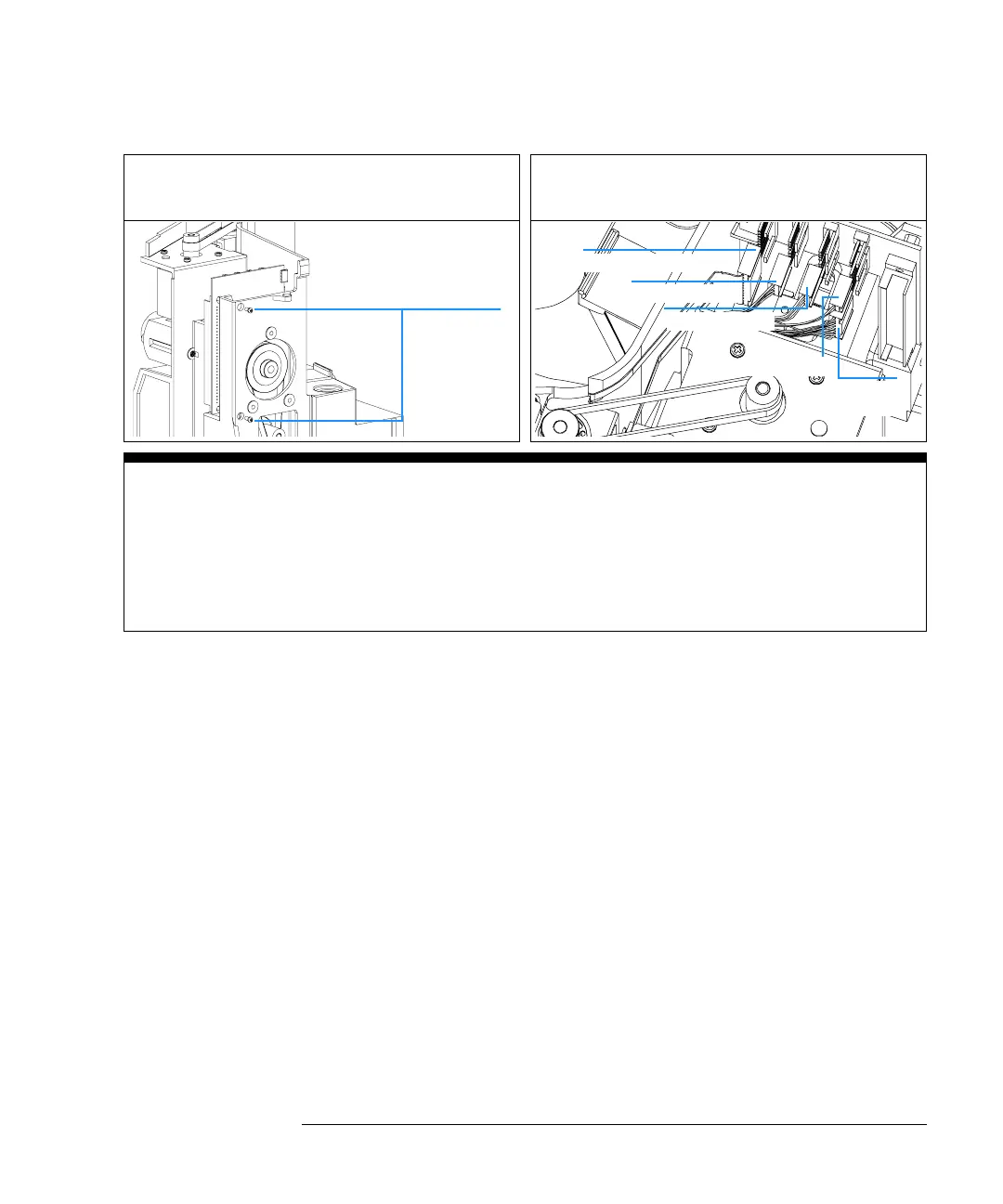

Fixing screws
Leak sensor
Metering drive
Injection
Valve
Needle drive
Flex board
