Introduction to the Control Module

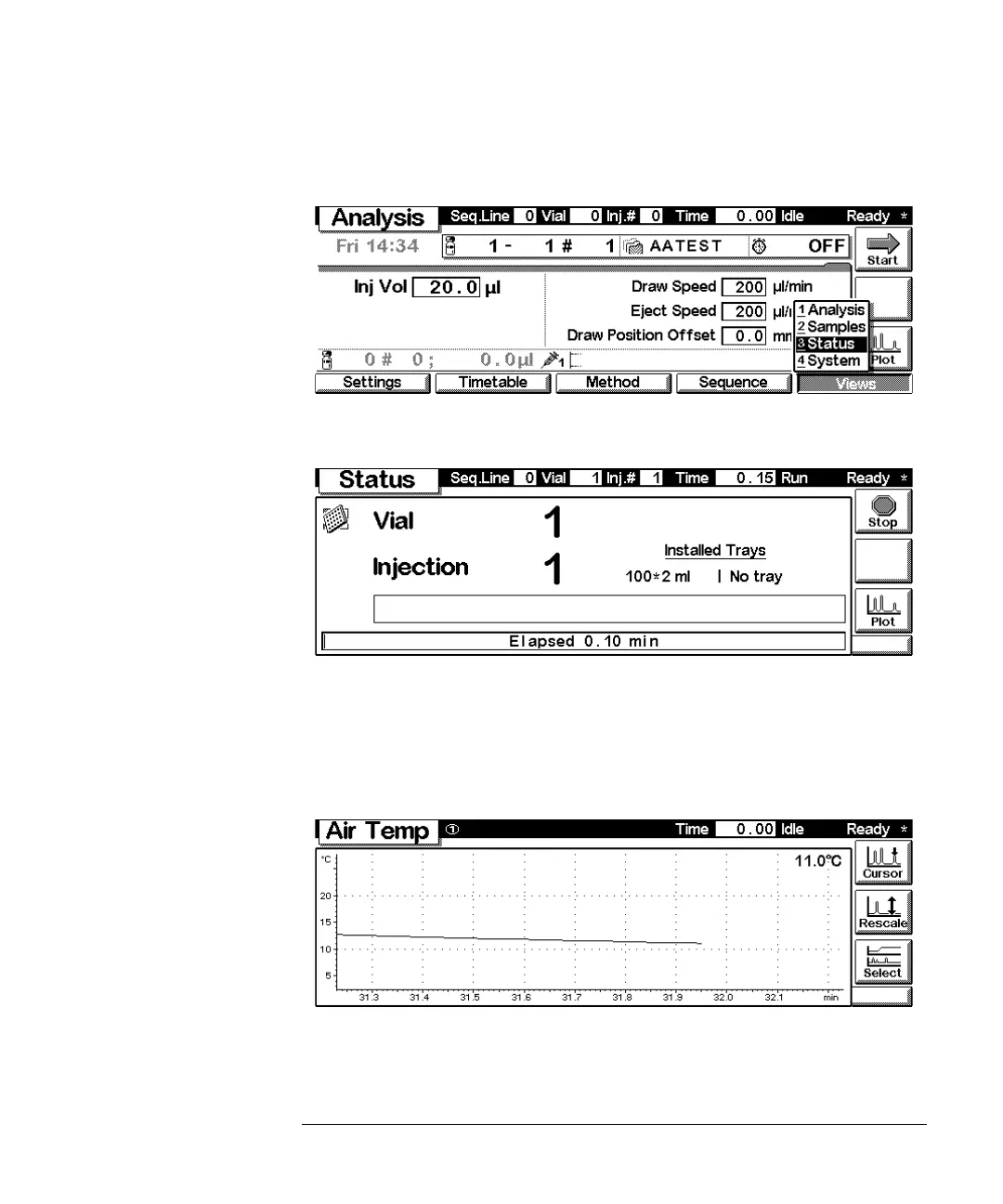

Screens available from the Analysis screen
Status Press F5 key (Views) and select Status.
This is an example if an Agilent 1100 ALS is configured stand-alone.
Signal plot Press F6 key (Plot) to enter the plot screen (available also from the Analysis
and System screen). Here you can observe the on-line signal(s). To add
additional on-line signals (maximum 3), press F6 key (Select). If more than
one signal is configured (see next), use the 1-2-3 number key to switch
between the signals.
