Replacement Procedures
i3070 Series 5i Help 7-13
2 Open the Zone 2 door and rear doors to access the Press. Lock the
front and rear hooks on the Press.
3 Turn off the PDU on/off switch.

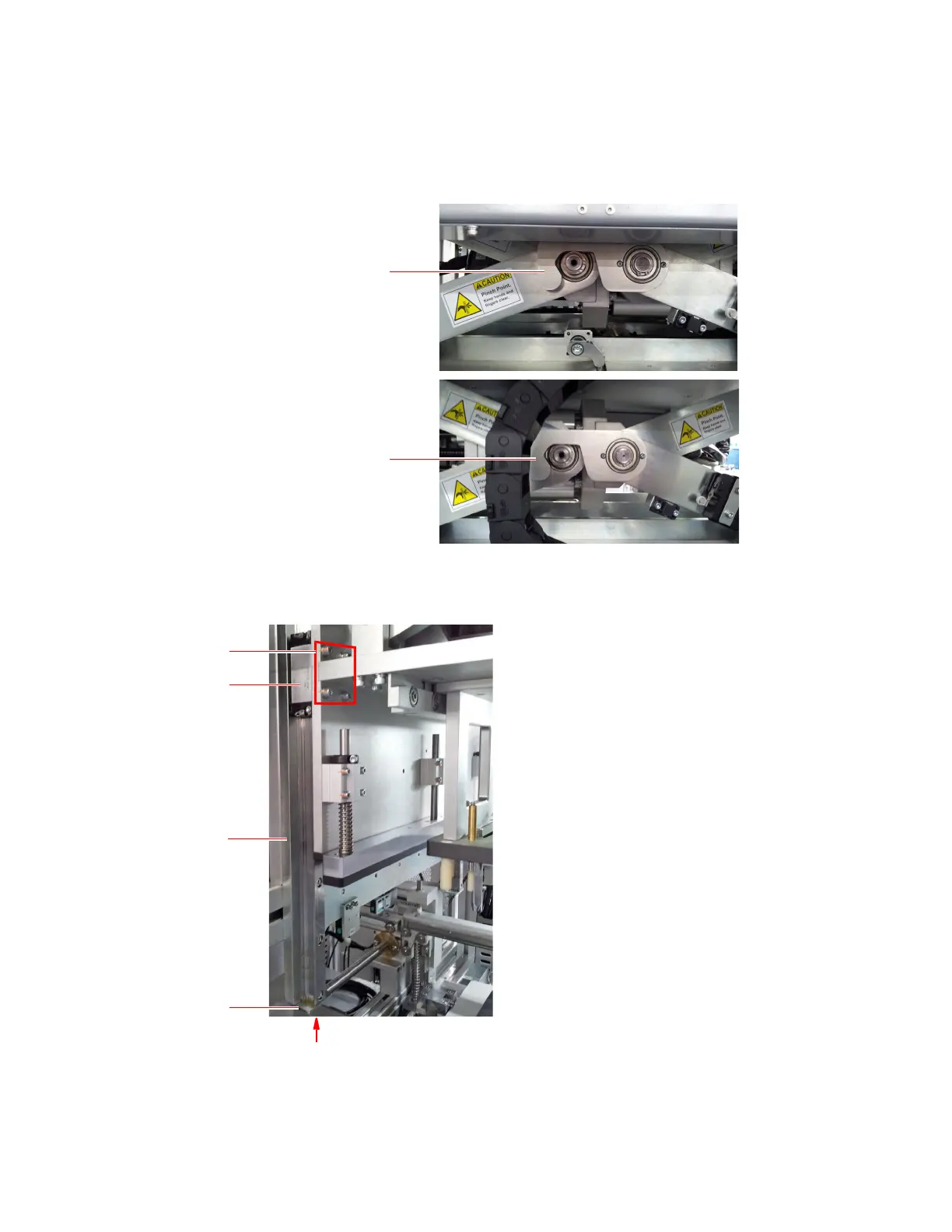

Front Hook Locked
Rear Hook Locked
4 Remove the lower runner block to be replaced:
a Remove two screws below the
runner block stopper and remove
the stopper.
b Remove four screws securing the
runner block.
c Slide the runner block down the
guide rail to remove it.
Guide Rail
Runner Block
Stopper
Two screws below stopper
Screws
Lower Runner Block
To Next Page
