Agilent Technologies Medalist i3070 5i Series User Manual

Getting Started
i3070 Series 5i Help 1-7
Manual Control Panel
Open the Zone 2 door to access the manual control panel.

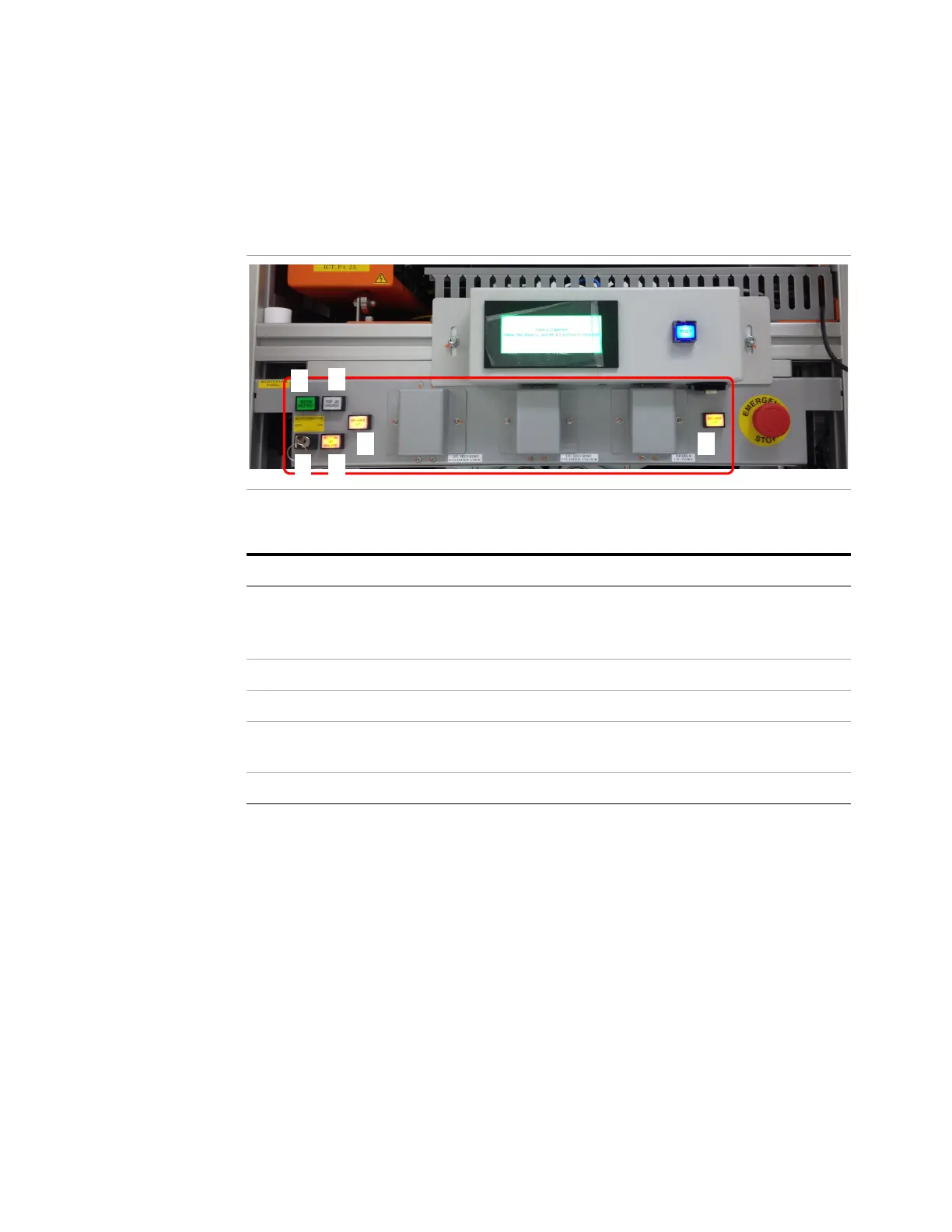

Figure 1-5 Manual Control Panel
Table 1- 2 Manual Control Panel
Button/Switch Description
1 MAINTENANCE KEY SWITCH Off – Enable Production Mode.
On – Enable Maintenance/Debug Mode; allows
system to operate with the doors open.
2TOP JIG LOCK Lock the top fixture.
3 BOTTOM JIG LOCK Lock the bottom fixture.
4 DRAWER CONTROL 1
DRAWER CONTROL 2
Press both buttons to move the drawer up or
down.
5 TESTER SELFTEST (not used)
4
1 3
4
2
5
