Getting Started
i3070 Series 5i Help 1-9
Starting the Medalist i3070 Series 5i
Start the system following the sequence below. See Figure 1- 6.
1 Turn the Main Power Switch to ON.

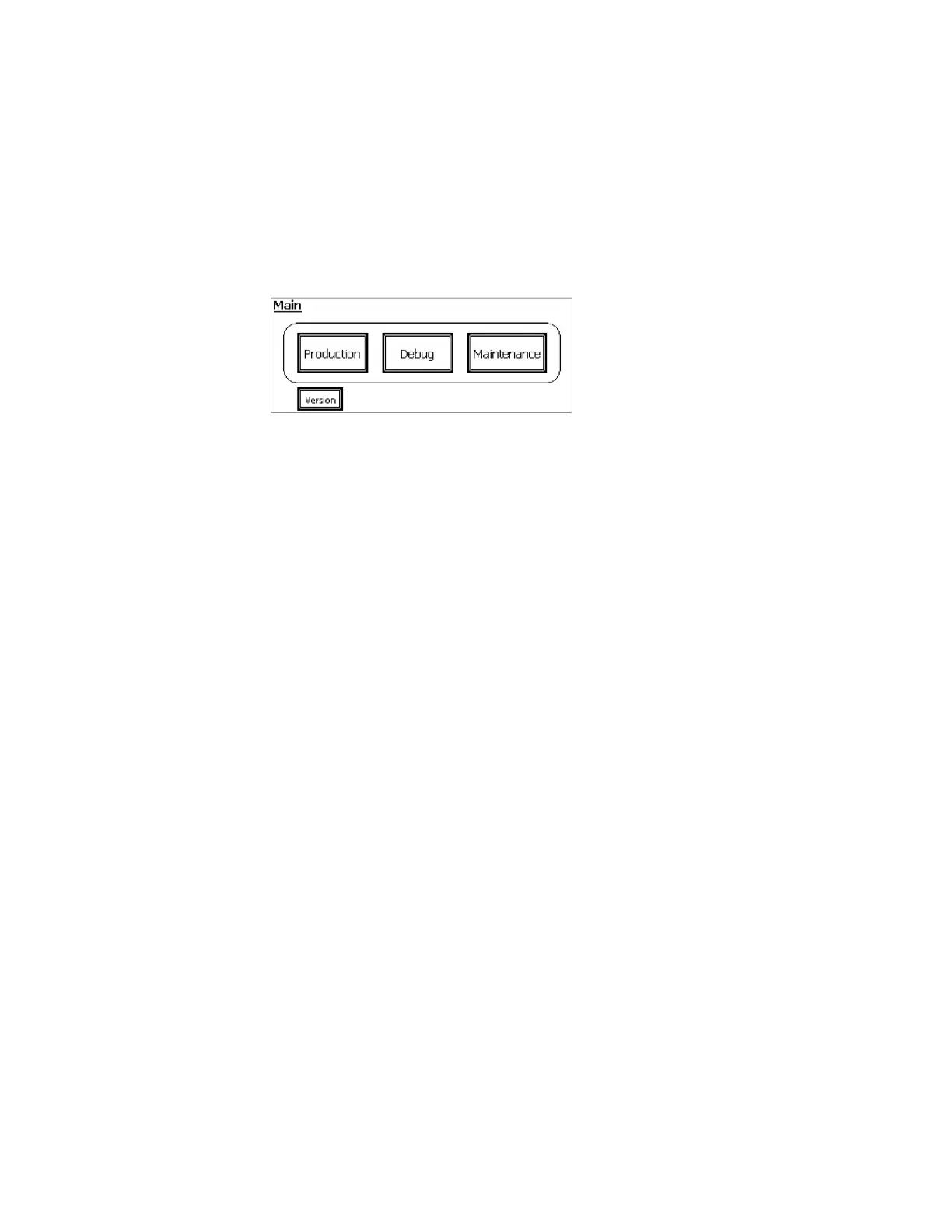

The LCD touch panel will display the Main page.
2 Press Reset to reset the safety relays.
Open the controller pod cover to access the following switches:
3 Turn ON the PDU on/off switch that enables power to the testhead.
4 Turn ON the DUT power supply.
5 Turn ON the controller and monitor.
6 Log on to the system. (Table 1- 3 lists the default user names.)
7 Boot the testhead:
a Open a Korn Shell window and type
dgn at the command line.
b In the DGN window, select Testhead Functs and boot the testhead
using Testh ea d P ow er On .
