1-8 i3070 Series 5i Help
Getting Started
System Software
Medalist i3070 Software
The Medalist i3070 software release 08.30si provides the test development
environment as well as the Operator Interface for production testing.
See Test Development to get started on the test development process.

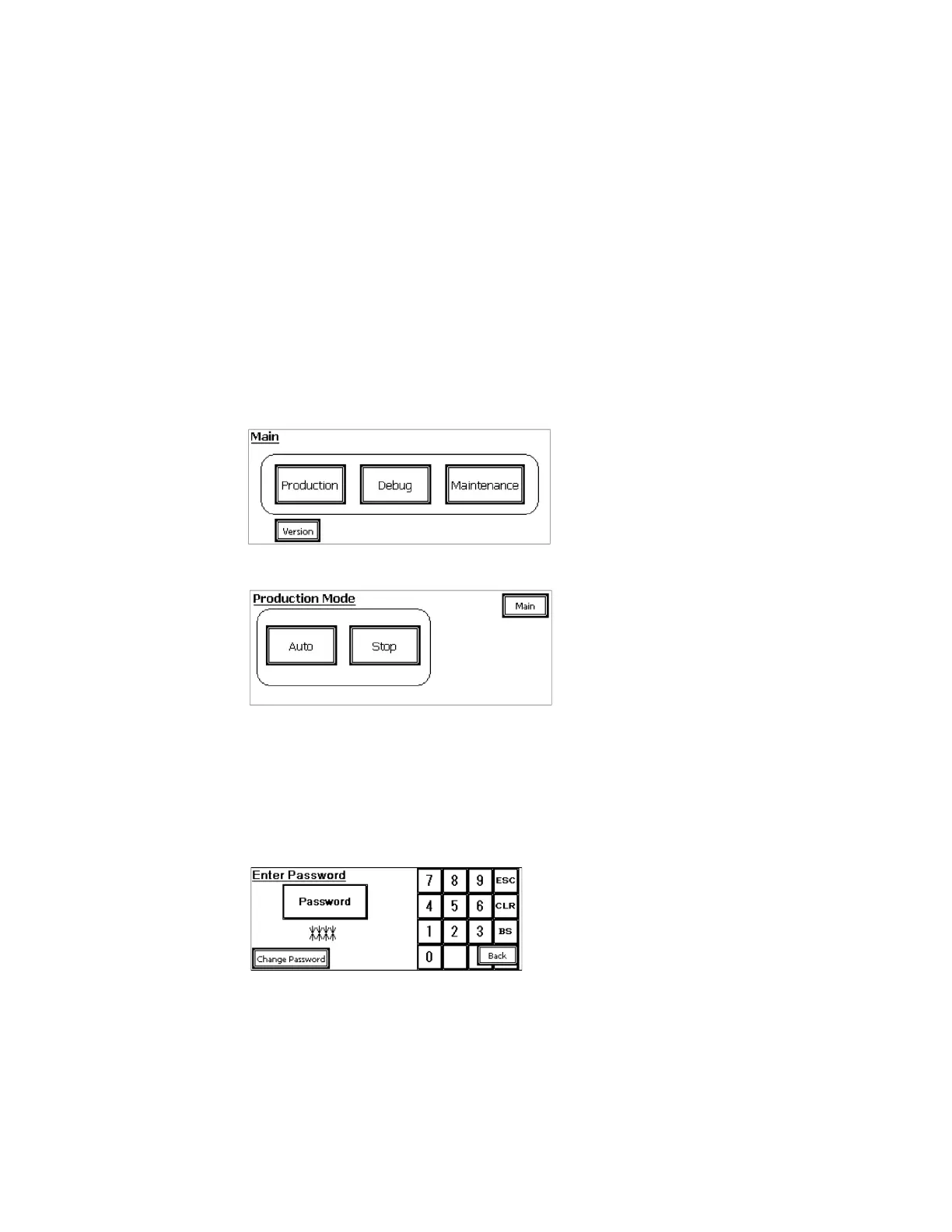

LCDTouch Panel Program
The LCD touch panel lets you select the mode of operation.
Select Production mode for production testing.
Both Debug and Maintenance modes require a password. Maintenance
mode lets you calibrate and set up the system for production. The
functions are described in detail in Touch Panel Functions.
Entering a Password
When a password is required, the following password page is displayed:
1 Press Password.
2 Key in the password and press Enter.
(The default password is 1263.)
