Zone 2 Conveyor Runner Block (Width Adjustment)
Follow this procedure to replace the runner blocks for the Zone 2
conveyor’s two horizontal guide rails.
Removal
1 Remove the right side cover.
2 Remove the movable rail assembly:
a Remove six screws securing one side of the rail assembly.
b Do the same on the other side and remove the rail assembly.
The guide rail can now be accessed.

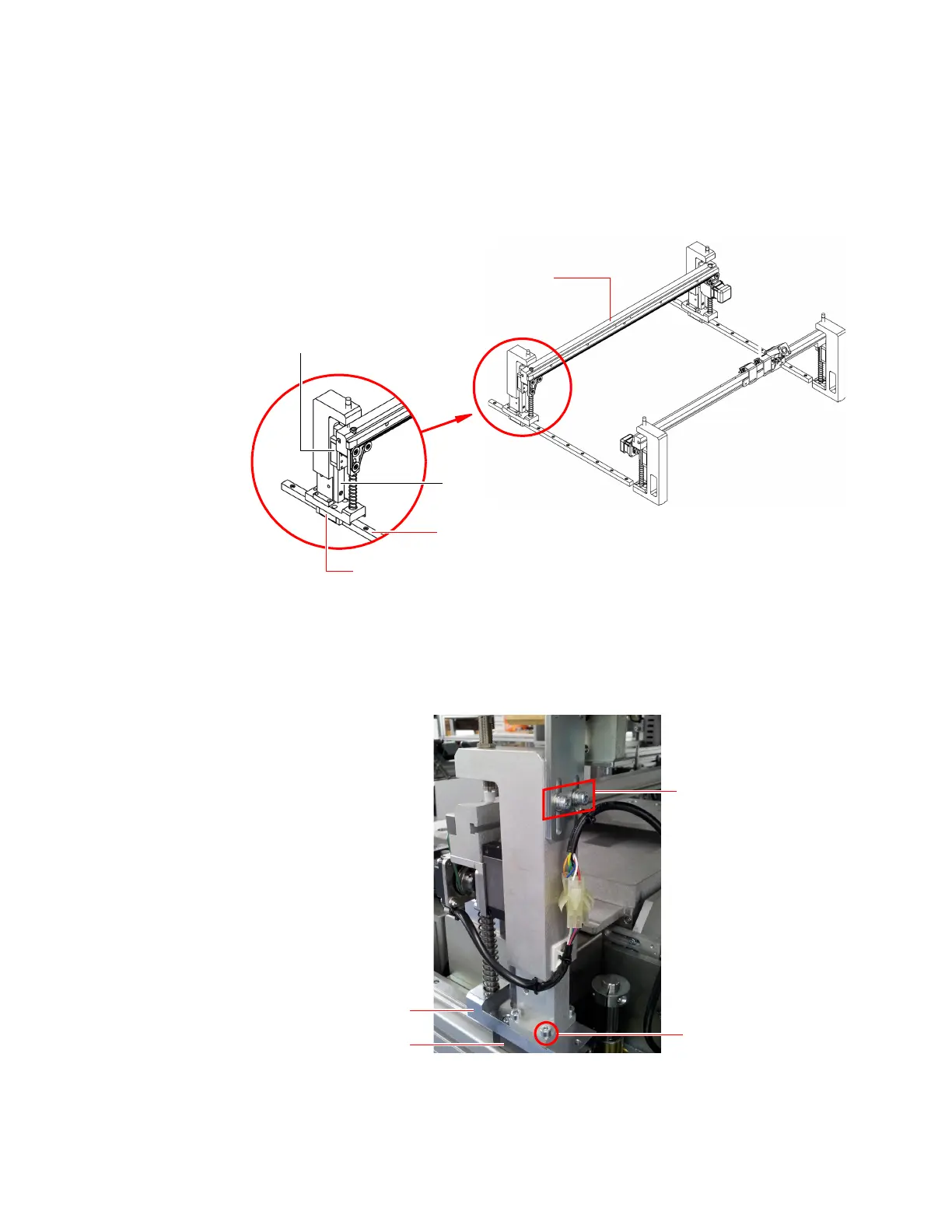

Horizontal Guide Rail
Runner Block (Up/Down)
Vertical Guide Rail
Runner Block (Width Adjustment)
Movable Rail Assembly
Zone 2 Conveyor Assembly
Runner Block
Movable Guide Holder
2 screws
4 screws around
the base
