Test Development
i3070 Series 5i Help 3-13
Optional Signals
• Board Orientation
• Board Sit
Board Orientation
An optional Board Orientation signal can be used to verify that:
• the orientation of the board is correct
• the board has stopped at the correct position for testing in Zone 2

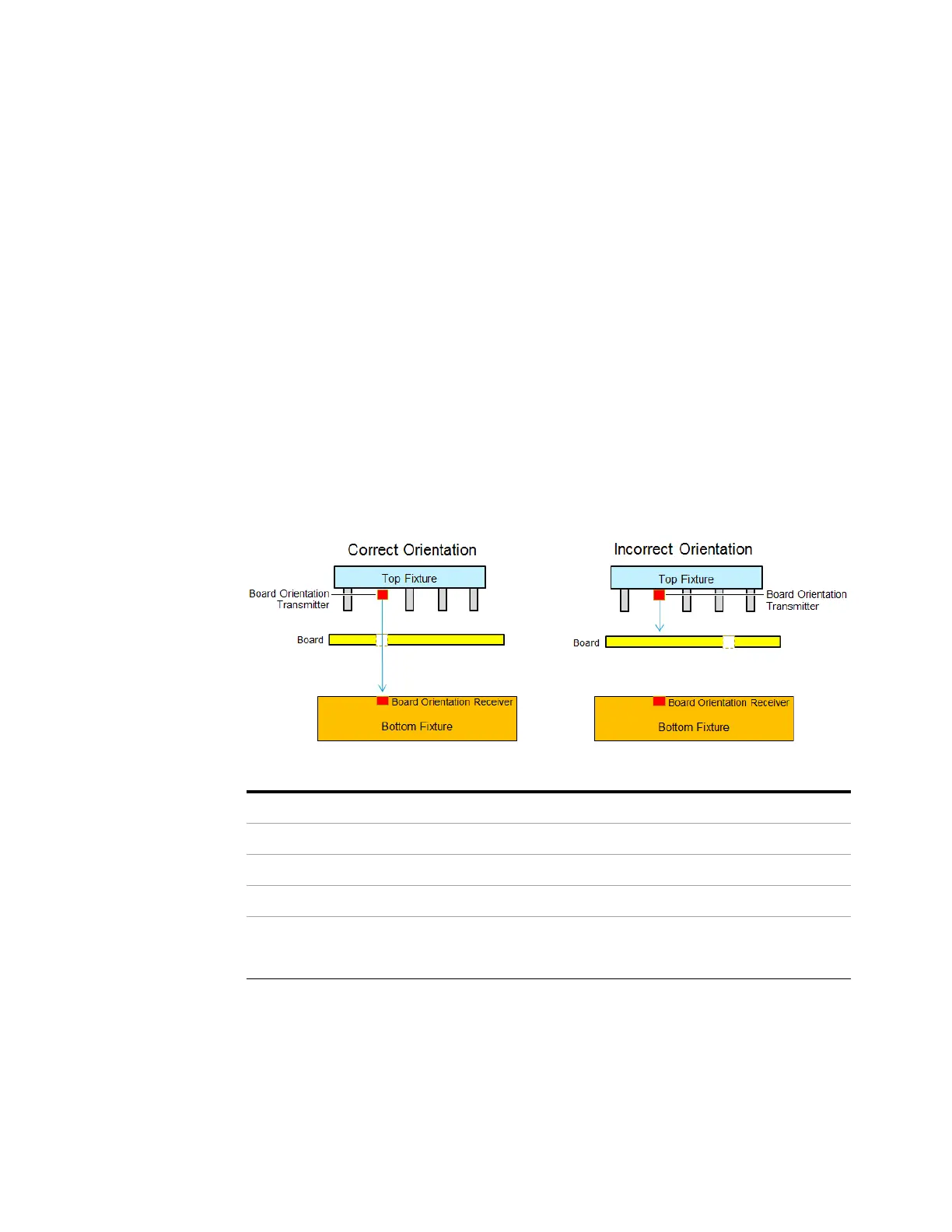

This may be achieved by means of a laser beam perpendicular to the
board surface. The transmitter and receiver are aligned with a tooling hole
of a correctly positioned and oriented board.
As the board travels from Zone 1 to Zone 2, it is detected by the stopper
sensor. When the board reaches the board stopper, the system checks for
the board orientation signal; if it is detected, the Press is automatically
lowered.
Table 3- 3 Board Orientation Laser Thru Beam Sensor
Signal NPN
Power +24V DC
Sense Distance 300 mm
Recommendation Optex (economical), Keyence, Omron
Connector Pinout (Receiver) Pin 1 Pin 2 Pin 3
+ (24DC) – (Com) Signal 007 (Board Orientation)
