Agilent Technologies Medalist i3070 5i Series User Manual

Replacement Procedures
i3070 Series 5i Help 7-23
Installing DUT Power Supply

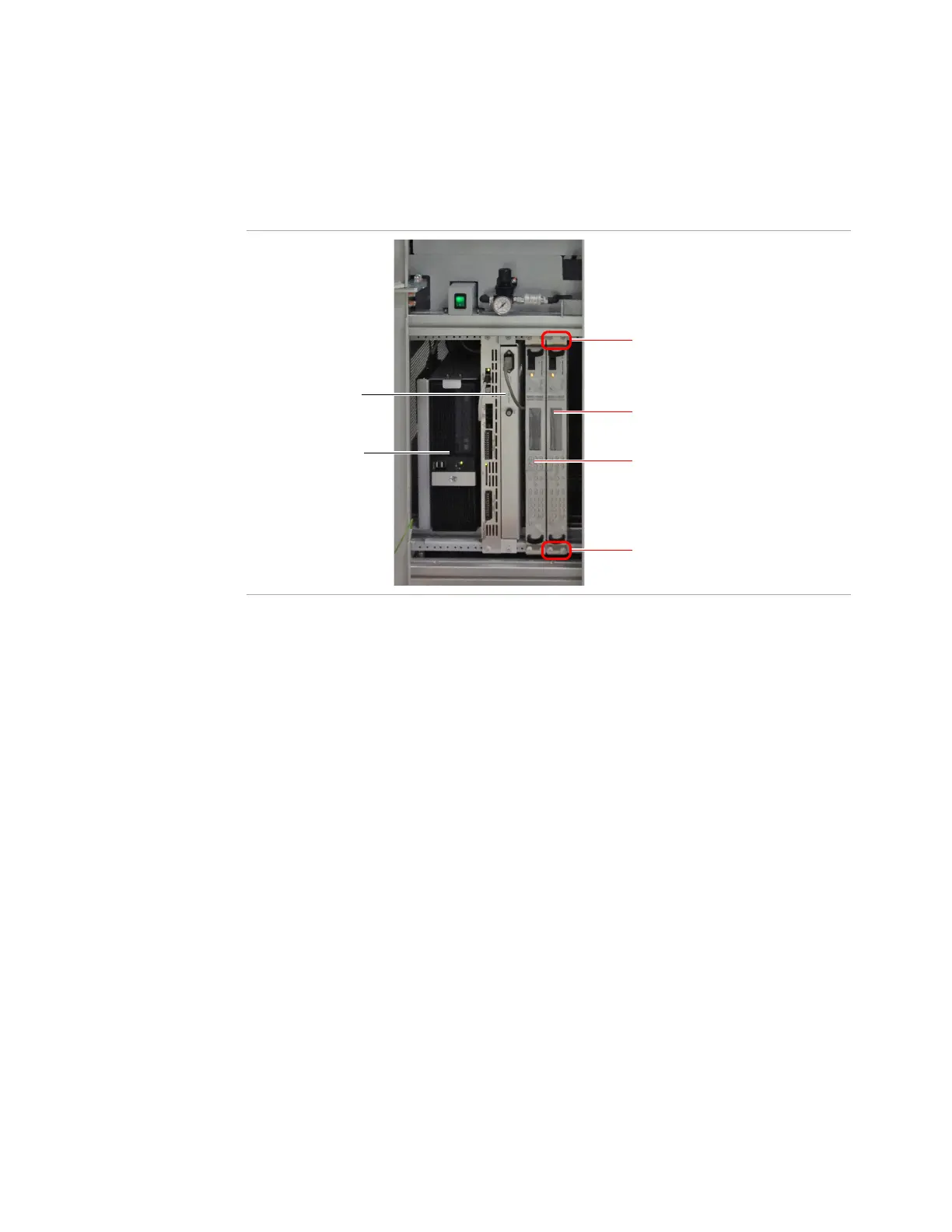

Figure 7-7 DUT Power Supply in Controller Pod
Installation
1 Open the controller pod door.
2 Slide the DUT power supply along the support rails into the system.
3 Secure it with four dress screws.
i-System Card
Dress Screws
Controller
DUT Power Supply
Dress Screws
(Module 3)
DUT Power Supply
(Module 2)
Assembly
