7-44 i3070 Series 5i Help
Compression Spring (Movable Side)
Follow this procedure to replace the springs for the Zone 2 conveyor
(movable side).
Removal
1 Remove the right side cover.

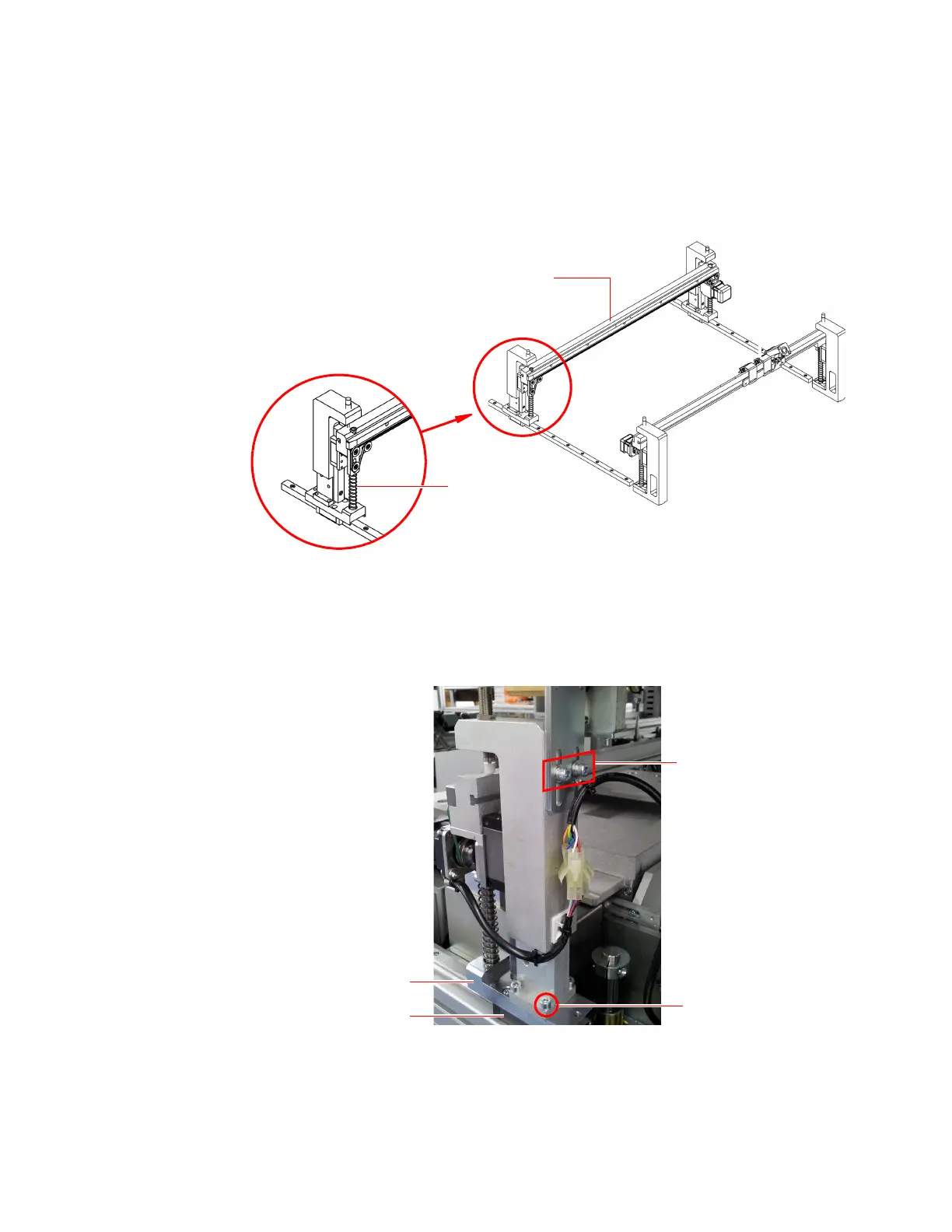

2 Remove the movable rail assembly:
a Remove six screws securing one side of the rail assembly.
b Do the same on the other side and remove the rail assembly.
Spring
Movable Rail Assembly
Zone 2 Conveyor Assembly
Runner Block
Movable Guide Holder
2 screws
4 screws around
the base
