6-12 i3070 Series 5i Help
Troubleshooting
If the sensor responds
1 Trigger the sensor again and check if the PLC responds (check the PLC
I/O indicator).
If the PLC responds, it was likely an intermittent failure and no further
action is needed.
2 If the PLC does not respond, perform a continuity check on the PLC’s
connector signal terminals.
3 If the continuity check fails, check the cables and connectors.
Troubleshooting PHS-12 to PHS-14, PHS-24 to PHS-26
See Figure 6- 5 on page 6- 17 for the location of the sensors.
See Figure 6- 5 for the location of the sensors; also see Figure 6- 7 and
Figure 6- 8.
Check the sensor response
• Manually trigger the sensor and see whether it responds.

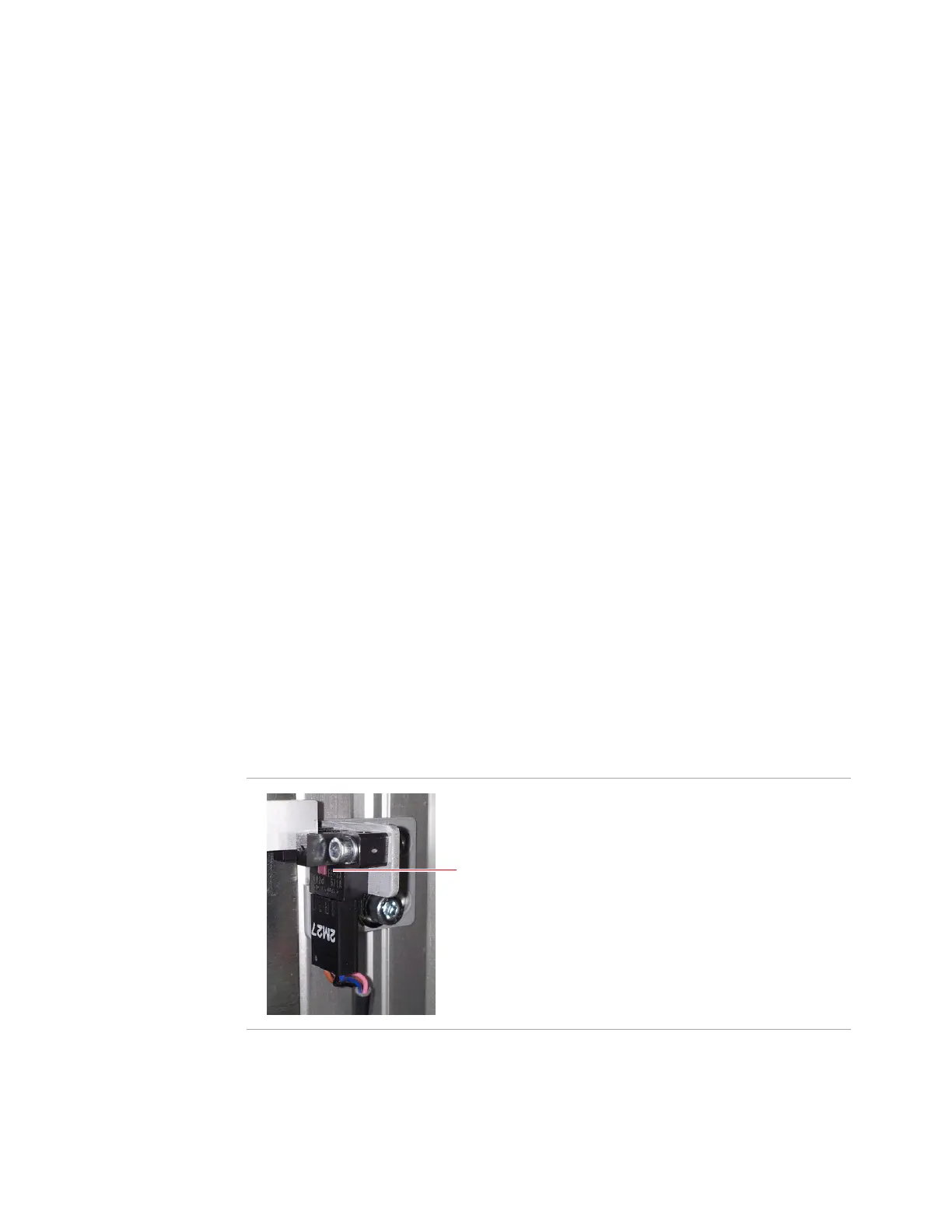

Figure 6-3 Board Sensor
PHS-12 Presser Upper Limit Sensor
PHS-14 Presser Home Sensor
PHS-13 Presser Lower Limit Sensor
PHS-25 Conveyor Right Limit Sensor
PHS-24 Conveyor Origin Sensor
PHS-26 Conveyor Left Limit Sensor
Red – Sensor is triggered
To Next Page
