Replacing Conveyor Motors
• Zone 1 Conveyor Motor
• Zone 2 Conveyor Motor (Movable Side)
• Zone 2 Conveyor Motor (Fixed Side)
Zone 1 Conveyor Motor
Removal
1 Open the rear door to access the Zone 1 conveyor assembly.

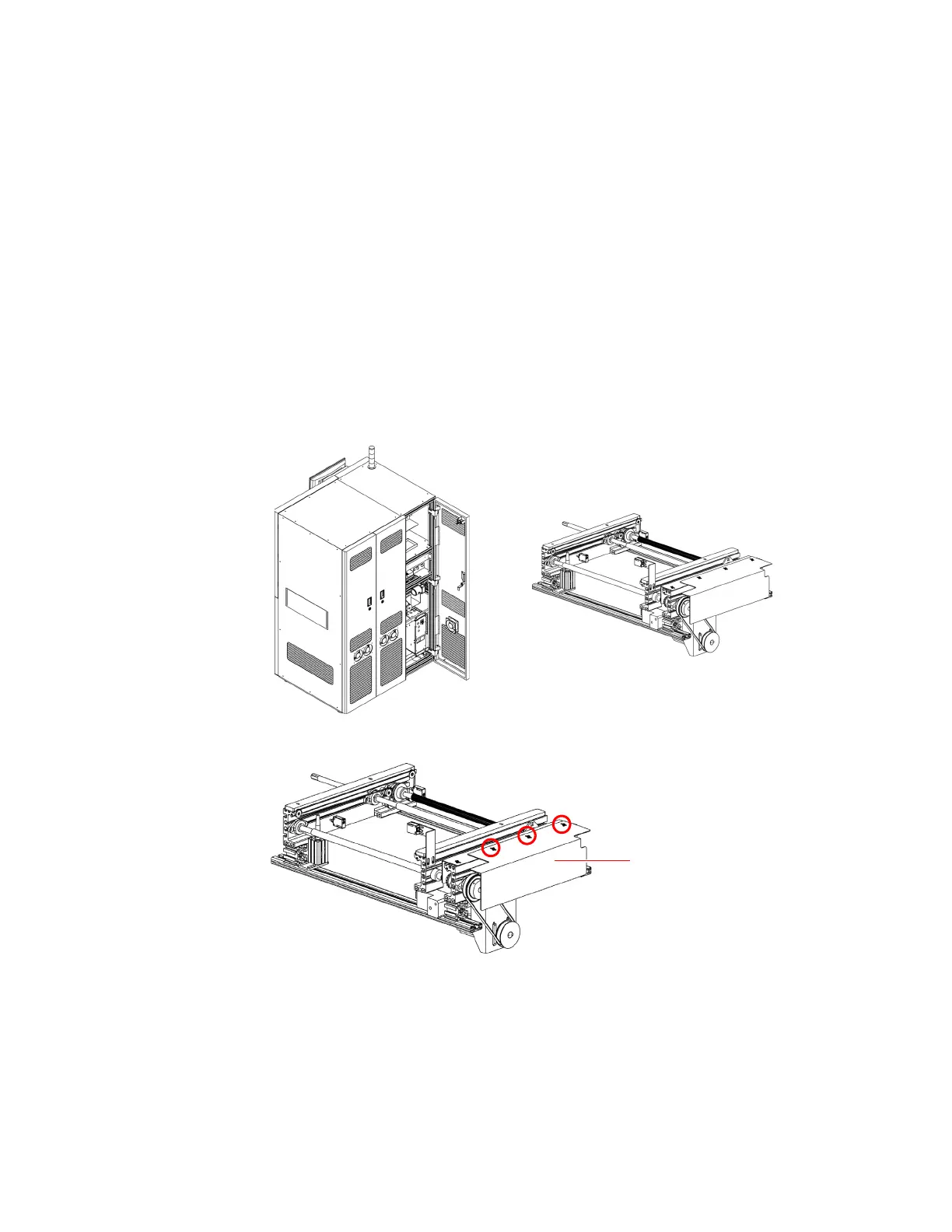

2 Remove three screws to remove the rear cover of the assembly.
Zone 1 Conveyor Assembly
Rear Cover
Screw
