Zone 1 Conveyor Belt (Fixed Side)
Removal
1 Open the Zone 1 door to access the access the Zone 1 conveyor
assembly.
2 Loosen the screw on the tensioner bearing to release tension on the
belt.
3 Slide the tensioner bearing in the direction shown and release the belt.
Note how the belt is routed.

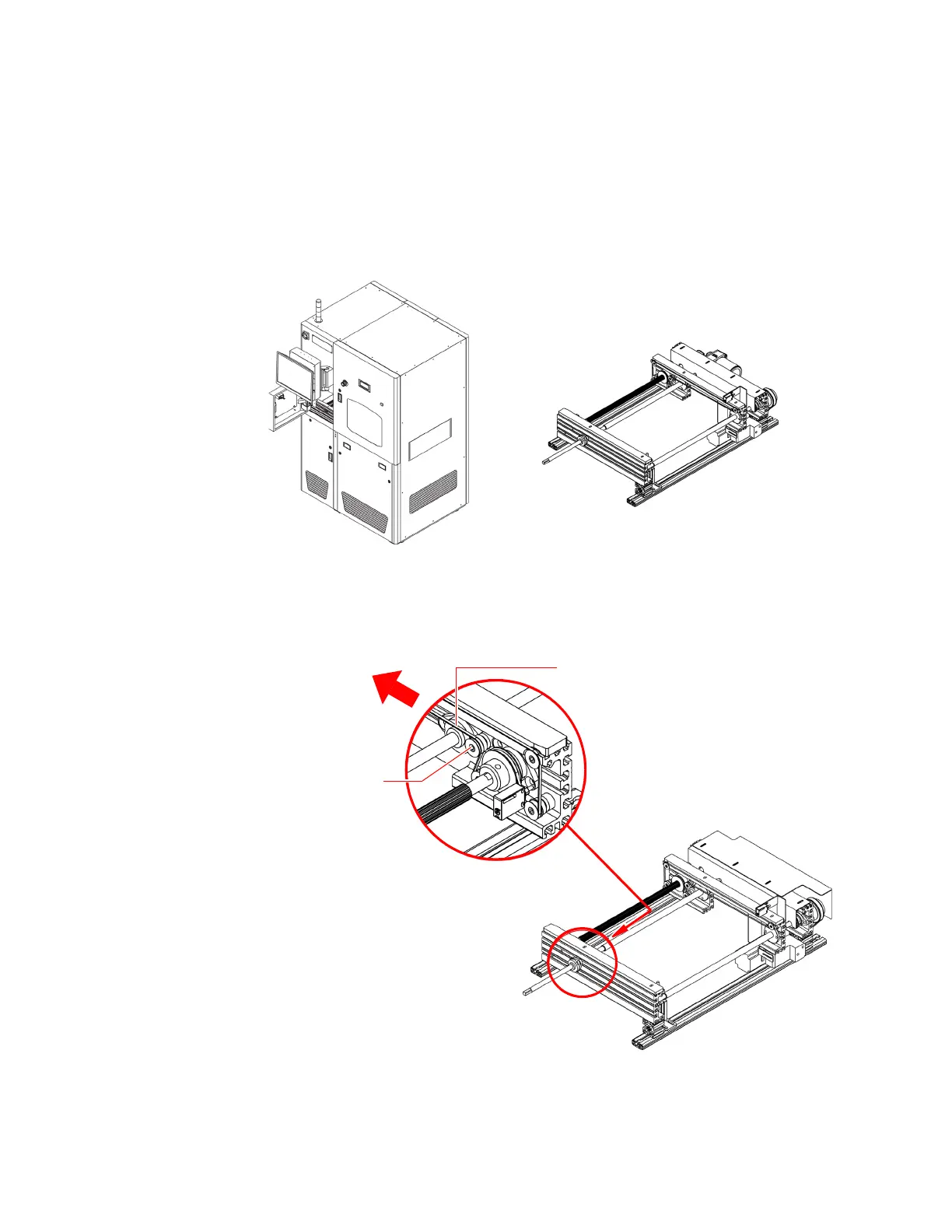

Zone 1 Conveyor Assembly
Tensioner Bearing
Belt
