Agilent Technologies Medalist i3070 5i Series - Bottom Fixture

Test Development
i3070 Series 5i Help 3-5
Bottom Fixture

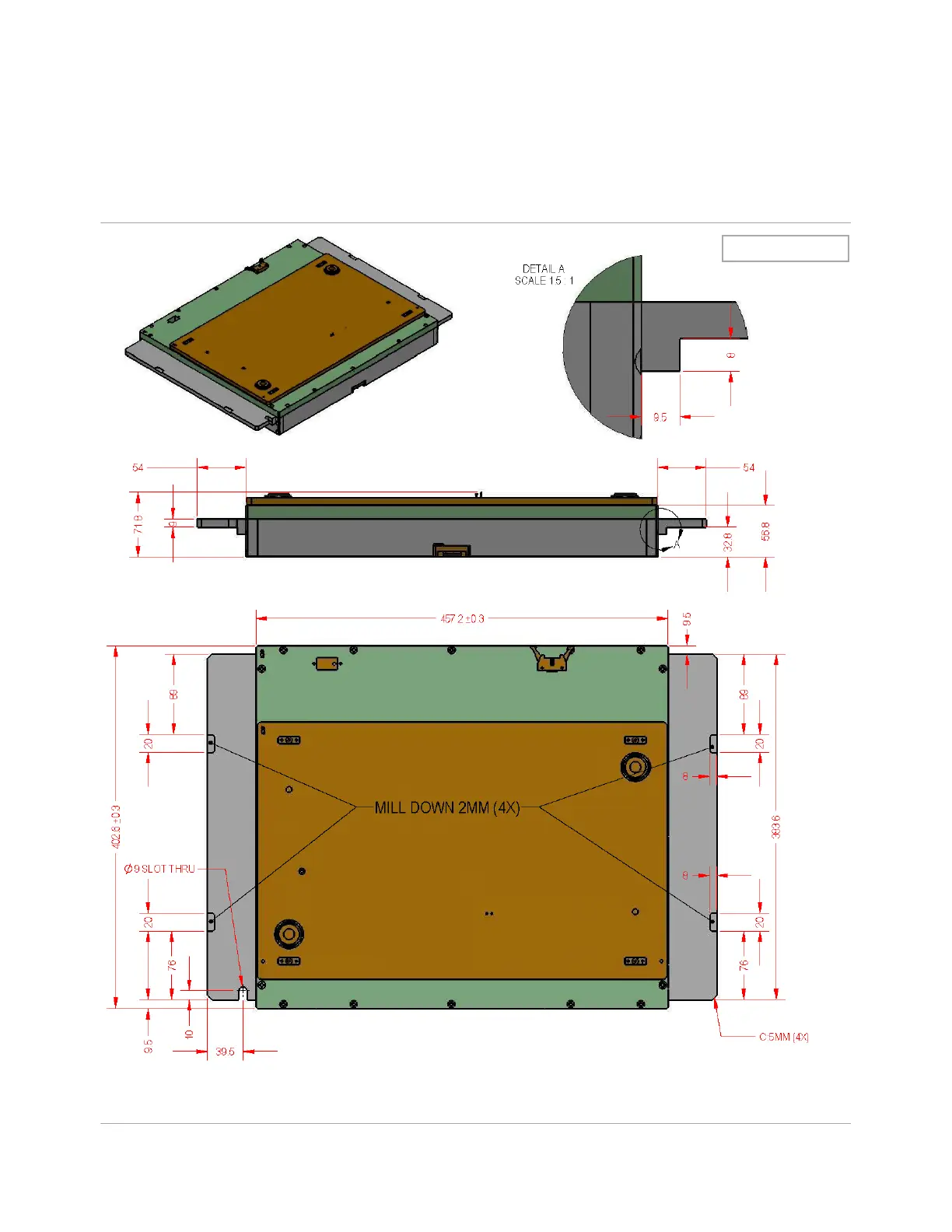

Figure 3-3 Bottom Fixture Specifications
Dimensions in mm
NOTE: All connectors (Board Align, Board Orientation, VTEP and CET control signals) should be placed
at the front of the fixture for easy connection and removal when changing the fixture.
