7-20 i3070 Series 5i Help
Replacement Procedures
3 To remove the runner block:
a Remove four screws to remove the movable guide holder.
b Remove 10 screws securing the guide rail to the system.
c Slide the runner block off the guide rail.
Installation
1 Slide the new runner block onto the guide rail.
2 Reinstall the guide rail in the system. Secure with 10 screws.
3 Secure the movable guide holder (four screws) to the guide rail.
4 Reinstall the movable rail assembly. On each side, tighten the four
screws at the base and make sure the rail assembly is properly aligned
before tightening the two screws at the top.
5 Close all covers/doors.

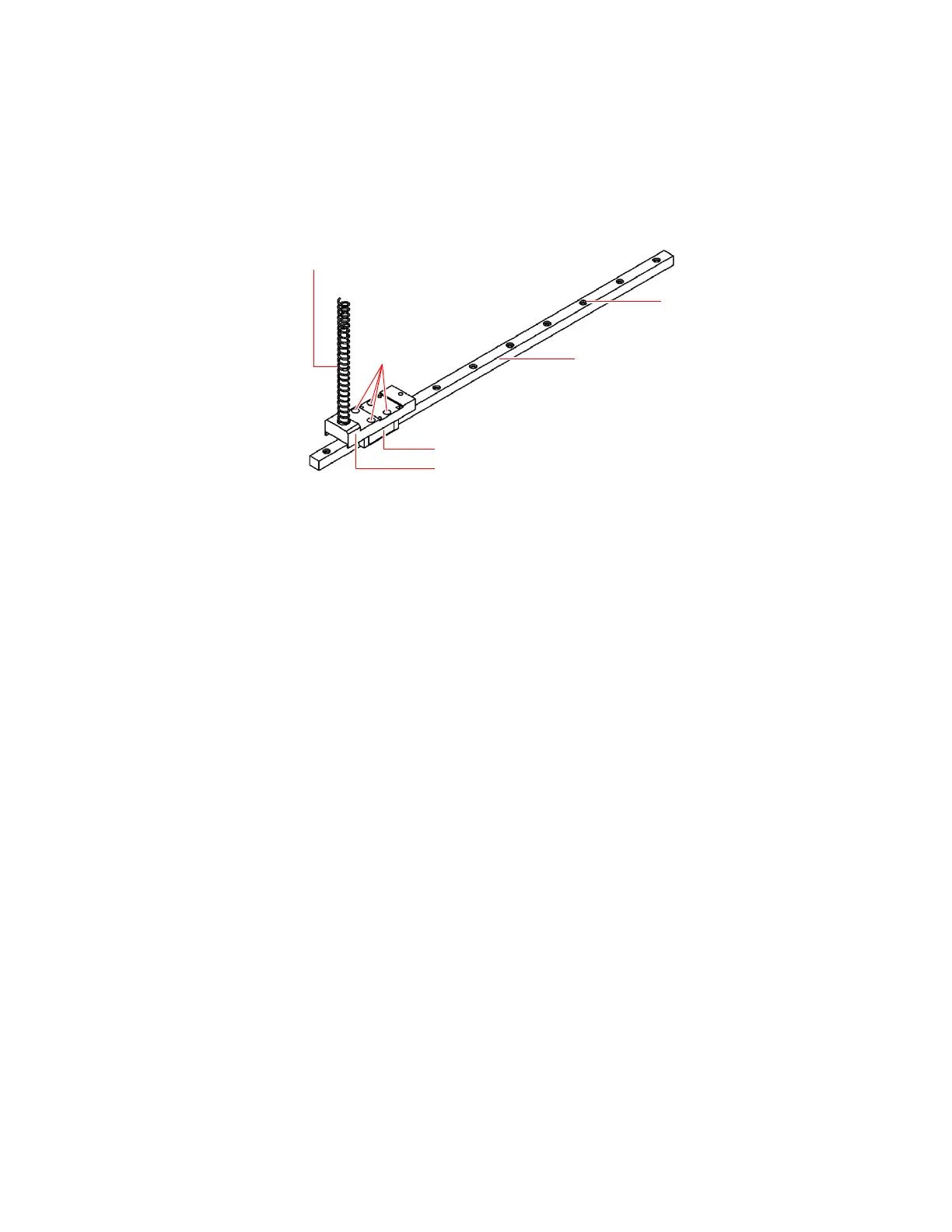

Runner Block
Movable Guide Holder
Guide Rail
Screws
Screw
Spring and Spring Guide
To Next Page
