Ethernet Ring Sub Ring using non-virtual-link

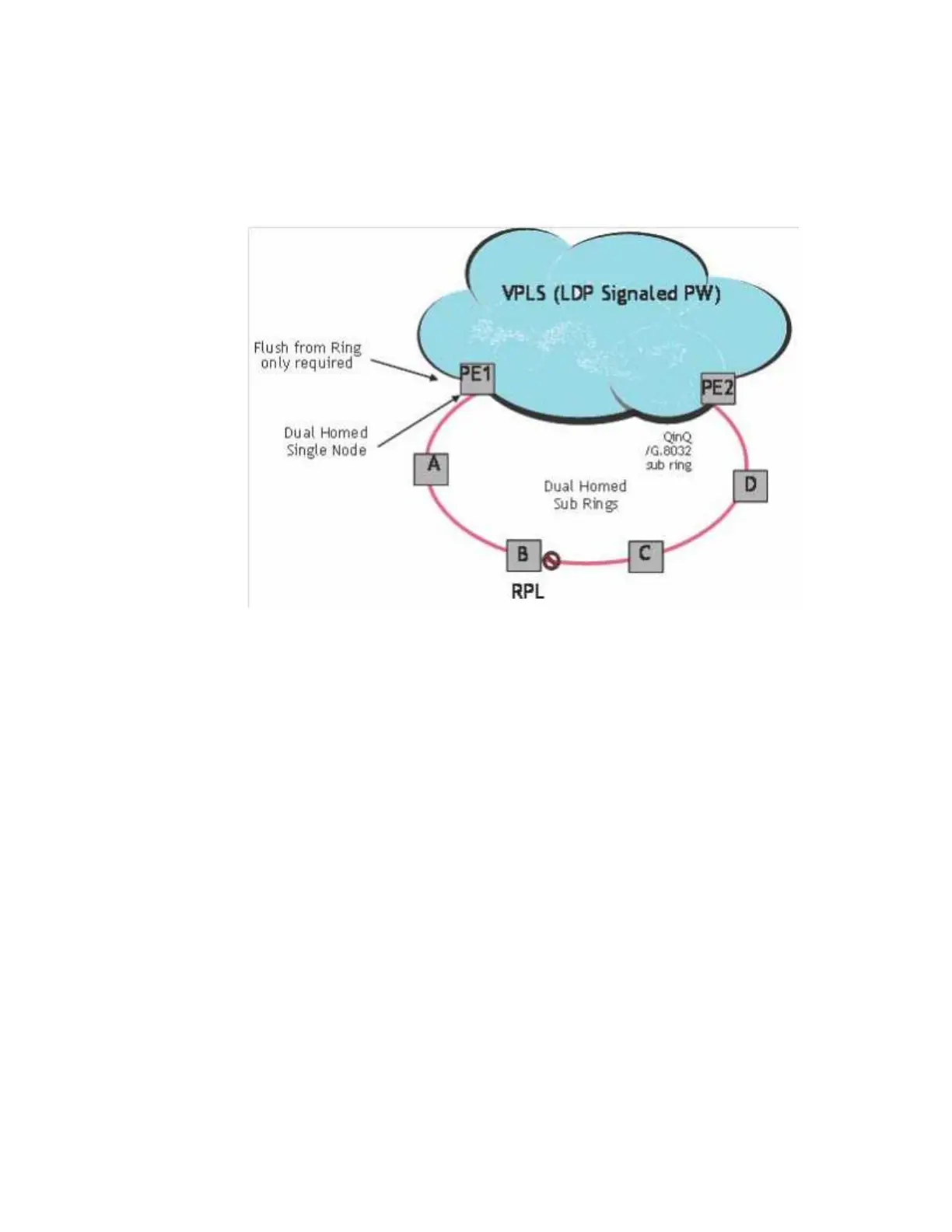

Figure 9: 0-6 Sub-Ring Homed to VPLS
The following illustrates a sample Sub-Ring using non-virtual-link configuration on PE1,
interconnecting node:
eth-ring 1
description "Ethernet Ring 1"
guard-time 20
no revert-time
rpl-node nbr
sub-ring non-virtual-link
interconnect vpls // VPLS is interconnection type
propagate-topology-change
exit
exit
path a 1/1/3 raps-tag 1.1
description "Ethernet Ring : 1 Path on LAG"
eth-cfm
mep 8 domain 1 association 8
ccm-enable
control-mep
no shutdown
exit
exit
