Subsystem Interrelationships
The sections below describe how LDP and the other subsystems work to provide services.

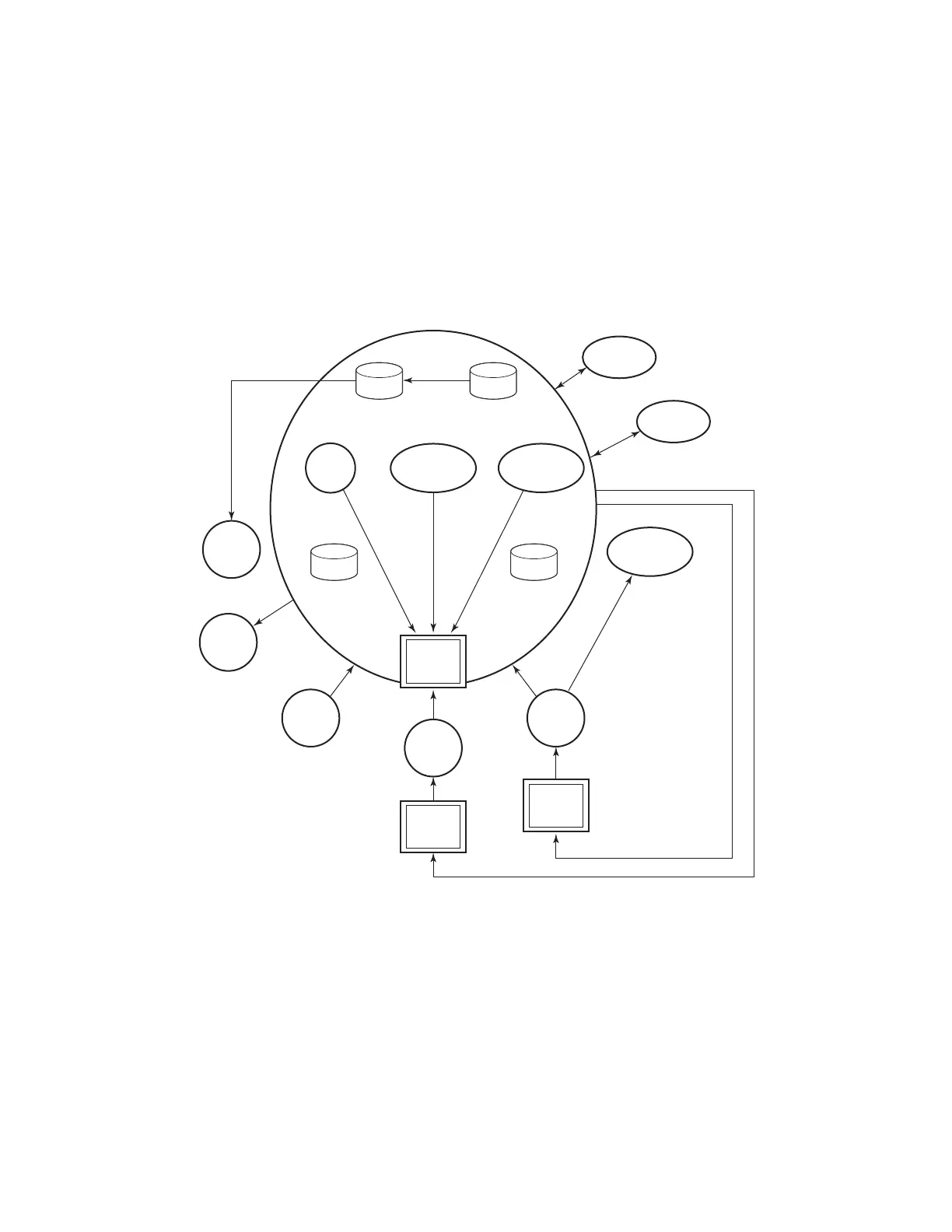

Figure 47: Subsystem Interrelationships
OSSRG017
Protocol
Memory
Mgr
Label
Mgr
Send/
Receive
Send/
Receive
Timer
Logger
Service
Mgr
Interface
Mgr
RTM
Config
(CLI/SNMP)
Timer DB FEC/
Label DB
LDP MIB Session DB
Event
Queue
Event
Queue
Event
Queue
