Chapter 1 Getting Started

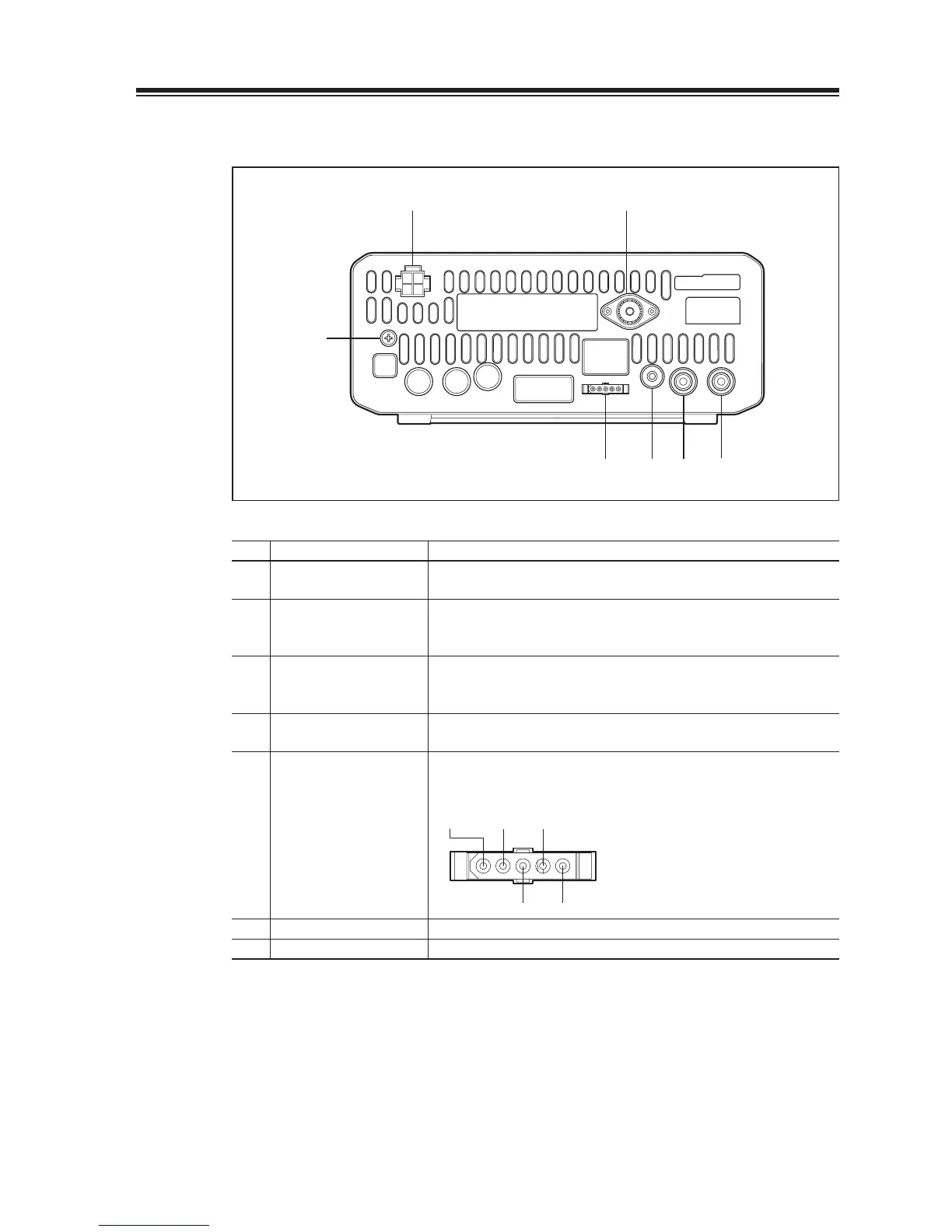

Rear Panel
(6) (1)
(3) (2)
(4)(5)
(7)
No. Key Function
(1) ANTENNA connector For connecting an HF band antenna. Takes a 50 ohm impedance
coaxial cable with PL-259 connector.
(2) RELAY (external relay)
jack
For connecting external equipment such as a linear amplifi er for
switching between reception and transmission. Takes a phono-
plug.
(3) External ALC input jack For connecting the phono-plug from the amplifi er ALC circuit
when a linear amplifi er is used. The ALC input voltage must be
from 0 to -3 V DC.
(4) CW-KEY jack For connecting a telegraph key or manipular paddle for internal
electronic-keyer
(5) ACC (accessory)
connector
For connecting optional EDX - 2 antenna tuner.
TUNE1
TUNE2
TKEY
13.8VDC (1A)
[Pin configuration]
GND
(6) Power connector For connecting the supplied DC power cable.
(7) GND (ground) terminal For connecting a ground cable.
