140 Update Modules and Redundant Systems
Action Details

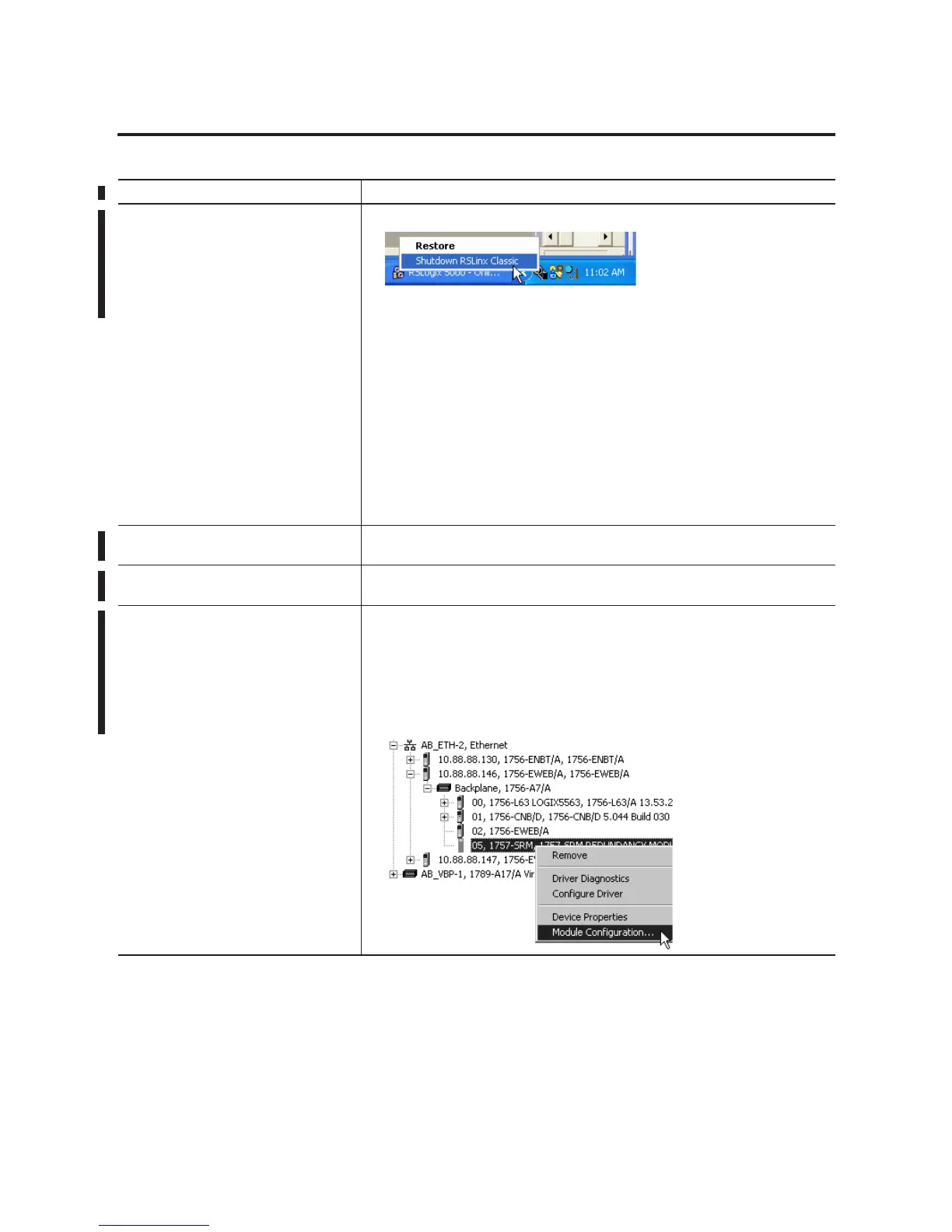

1. Update the software. A. Go to the tool tray of your computer and shutdown RSLinx software.
B. Update this software:
• 1757-SRM System Redundancy Module Configuration tool
• RSLogix 5000 software
• RSLinx software
• RSNetWorx software
• ControlFLASH firmware update kit.
If you are planning to uninstall version 13 of your RSLogix 5000 software, wait until you
have completed and validated your update.
2. Add the latest EDS files. Start ⇒ Programs ⇒ Rockwell Software ⇒ RSLinx Tools ⇒ EDS Hardware Installation
Tool
3. Put the keyswitches in the REM position. Put the keyswitch of each redundant controller to the REM position. Otherwise you will not
be able to update the system.
4. Open the SRM configuration tool for the
primary chassis.
A. Start RSLinx software.
B. From the Communications menu, choose RSWho.
C. Open the branches of your network until you find the 1757-SRM module in the primary
chassis.
D. Right-click the SRM and choose Module Configuration.
To Next Page
