86 Configure and Program the Controller
Use UID and UIE Instruction Pairs
Bound critical rungs with UID and UIE instruction pairs. This prevents
the higher priority task form interrupting the scan-dependent logic.
Buffer Critical Data

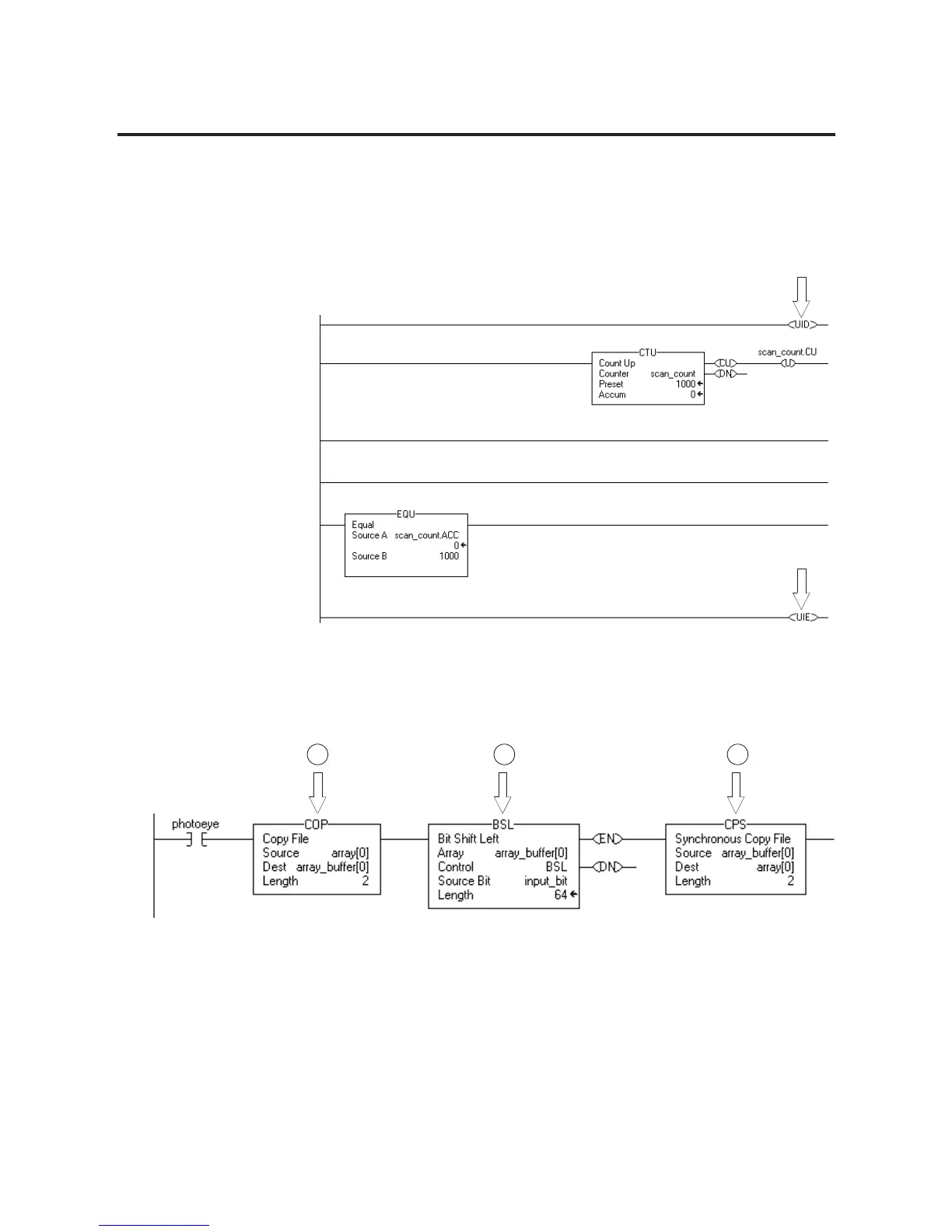

This example shows the use of a buffer together with a BSL
instruction.
1. The COP instruction moves the data into a buffer array.
2. The BSL instruction uses the data in the buffer. If a switchover
occurs, the source data (array tag) remains unaffected.
3. The CPS instruction updates array tag. Since higher priority
tasks cannot interrupt a CPS instruction, the instruction keeps
the integrity of the data.
1. 2. 3.
43065
