Specifications A-3

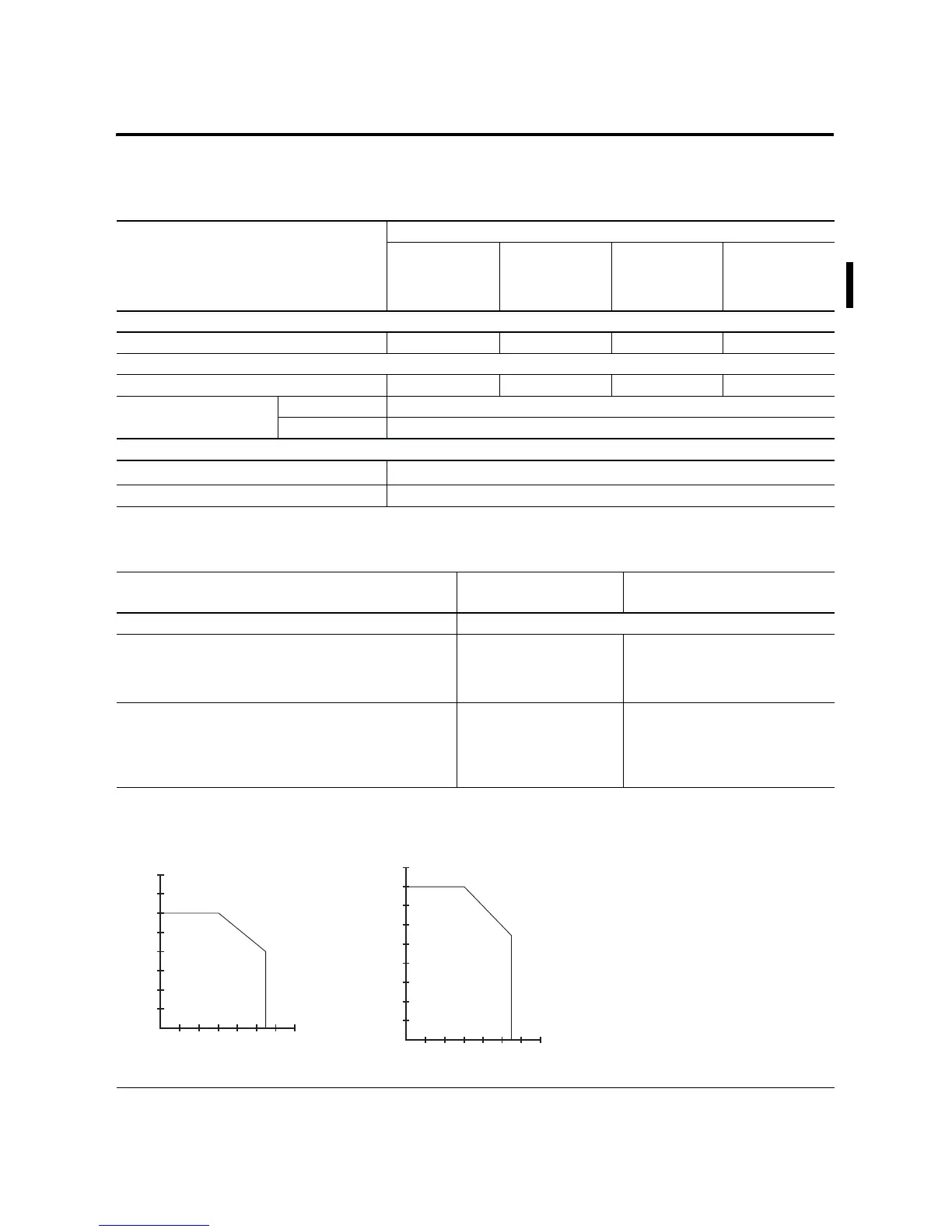

Table A.3 Output Specifications - General
Description 1762-
L24AWA
L24BWA
L24AWAR
L24BWAR
L24BXB
L24BXBR
L40AWA
L40BWA
L40AWAR
L40BWAR
L40BXB
L40BXBR
Relay and FET Outputs
Maximum Controlled Load 1440 VA – 1440 VA 1440 VA
Maximum Continuous Current:
Current per Group Common 8A 7.5A 8A 8A
Current per Controller at 150V max 30A or total of per-point loads, whichever is less
at 240V max 20A or total of per-point loads, whichever is less
Relay Outputs
Turn On Time/Turn Off Time
10 msec (minimum)
(1)
Load Current 10 mA (minimum)
(1) scan time dependent
Table A.4 BXB FET Output Specifications
Description General Operation
High Speed Operation
(1)
(Output 2 Only)
Power Supply Voltage 24V dc ( -15%, +10%)
On-State Voltage Drop:
•at maximum load current
•at maximum surge current
•1V dc
•2.5V dc
•Not Applicable
•Not Applicable
Current Rating per Point
•maximum load
•minimum load
•maximum leakage
•See graphs below.
•1.0 mA
•1.0 mA
•100 mA
•10 mA
•1.0 mA
Maximum Output Current (temperature dependent):
0.25
10˚C
(50˚F)
30˚C
(86˚F)
50˚C
(122˚F)
1.0A, 55˚C (131˚F)
1.5A, 30˚C (86˚F)
70˚C
(158˚F)
0.5
0.75
1.0
1.25
1.5
1.75
2.0
1.0
10˚C
(50˚F)
30˚C
(86˚F)
50˚C
(122˚F)
5.5A, 55˚C (131˚F)
8A, 30˚C (86˚F)
70˚C
(158˚F)
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
FET Current per Point
(1762-L24BXB, L40BXB
1762-L24BXBR, L40BXBR)
FET Total Current
(1762-L40BXB and L40BXBR)
Current (Amps)
Current (Amps)
Temperature
Temperature
Valid
Range
Valid
Range

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
