114 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Chapter 5 Using the LCD

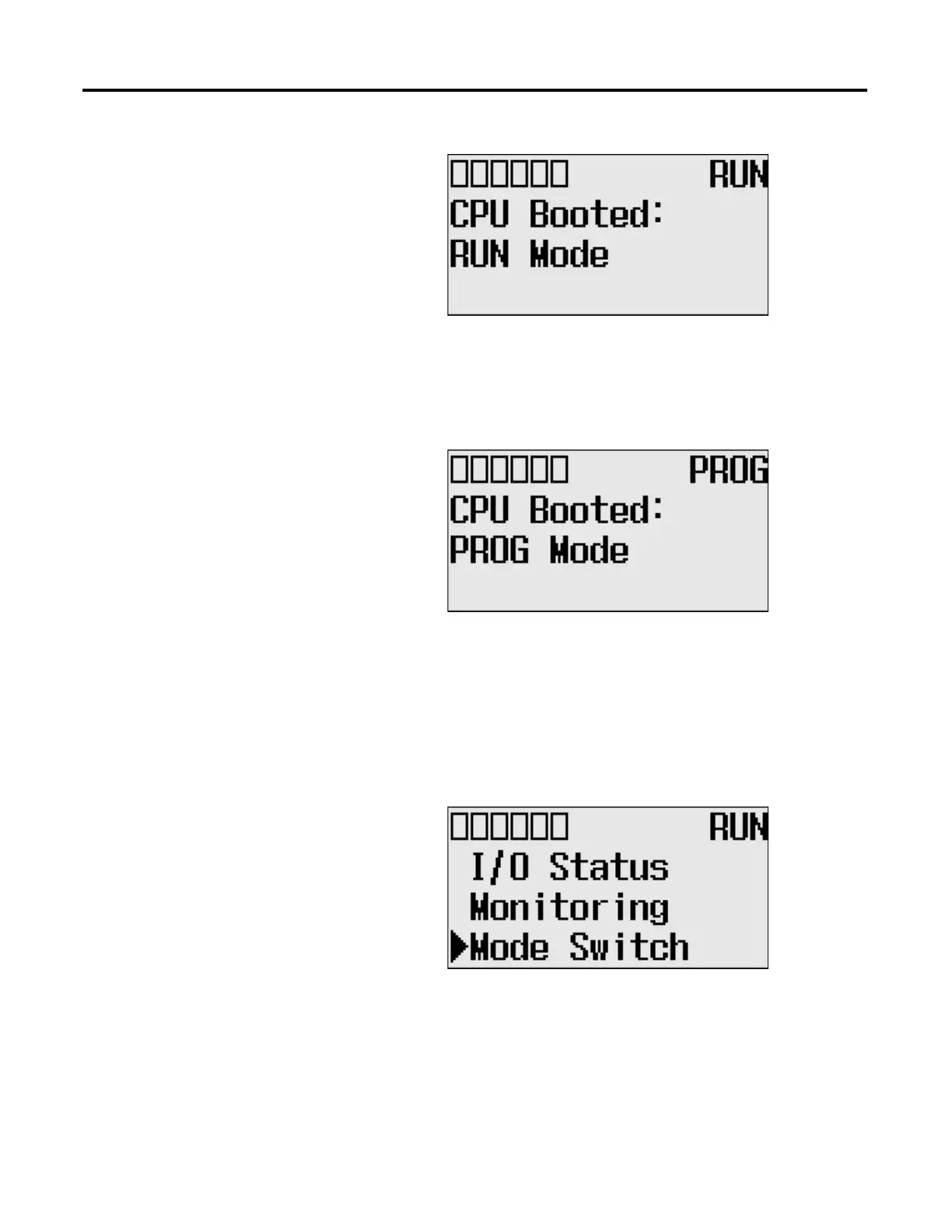

• How to forcibly set Mode Switch to PROG when the controller is
powered up:
Press ESC key for 5 seconds when the controller is powered up.
The following LCD screen appears if it’s successfully done.
Note that I/O output status may be changed for some programs.
While the controller is powered on, follow these steps to change the position of
the Mode Switch.
1. On the Main Menu screen, select Mode Switch by using the Up and Down
keys on the LCD keypad.
