Allen-Bradley MicroLogix 1400 - DNP3 Analog Output Object

Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 281
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

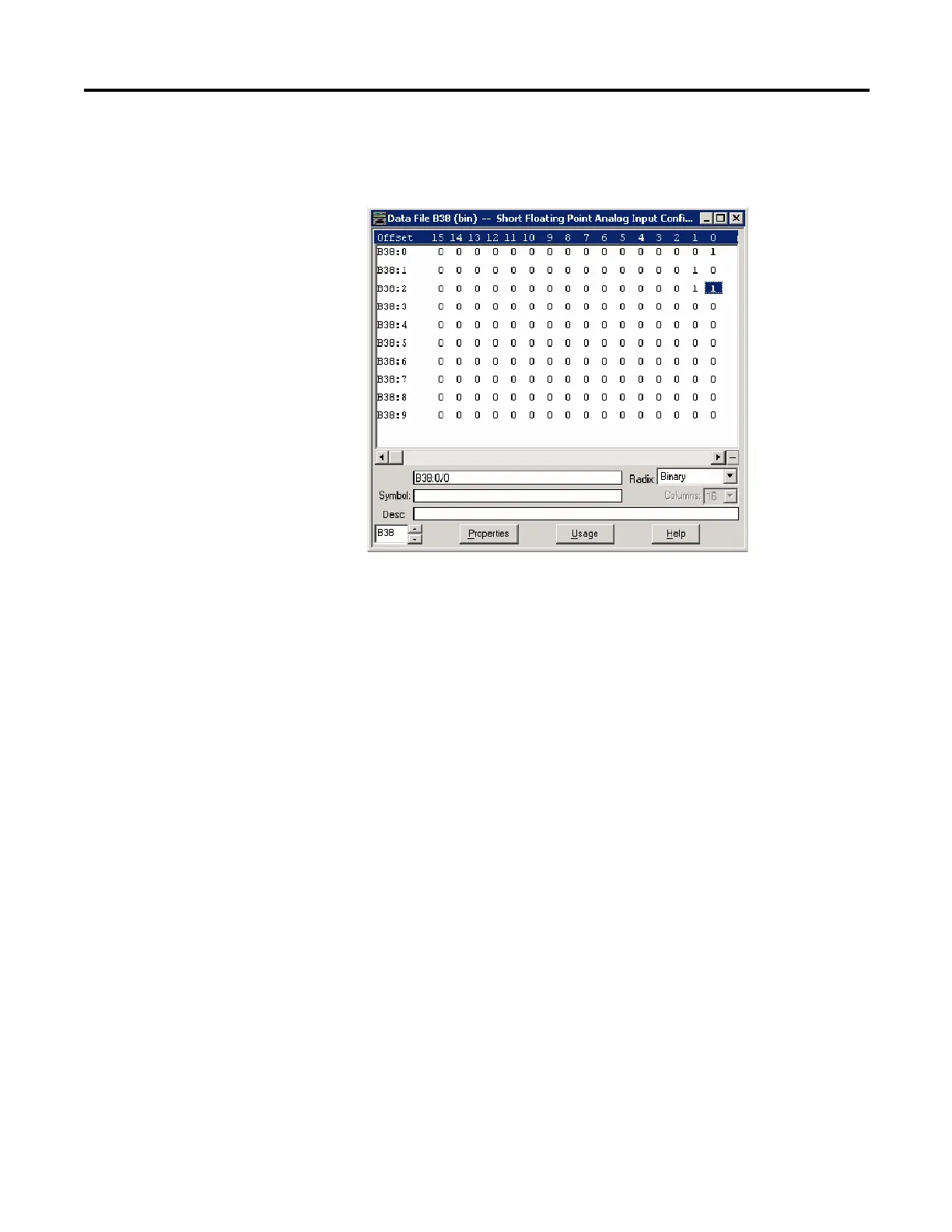

Class Level of Index 22 is 3(B38:2/0 and B38:2/1), and Class Level of other
Indexes are 0.
DNP3 Analog Output Object
The supported object group and variations are listed in this section. The
MicroLogix 1400 responds with the default group and variation when the DNP3
Master requests to read an object with Any variation.
Analog Output Status Objects:
• g40v0 - Analog Output Status - Any Variations
• g40v1 - Analog Output Status - 32-bit with flag (default)
• g40v2 - Analog Output Status - 16-bit with flag (default)
• g40v3 - Analog Output Status - Single-prec flt-pt with flag (default)
Analog Output Command Objects:
• g41v1 - Analog Output - 32-bit
• g41v2 - Analog Output - 16-bit
• g41v3 - Analog Output - Single-prec flt-pt
Related Object File Number:
• 16-bit Analog Output Object File Number
• 32-bit Analog Output Object File Number
• Short Floating Point Analog Output Object File Number
Related Configuration File Number:
- None
