Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 91

Using the LCD Chapter 5

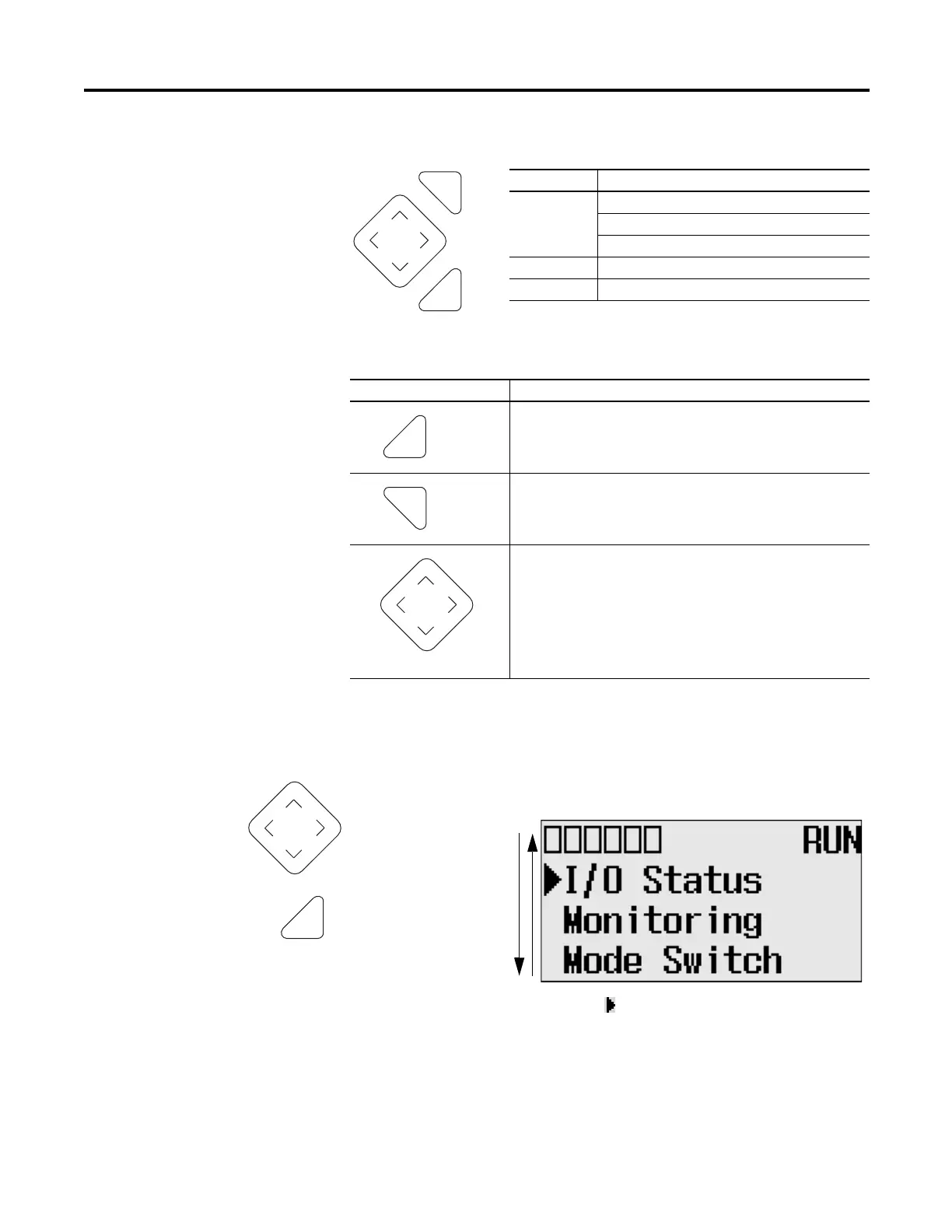

Operating Buttons

Using Menus to Choose Values

Selecting Between Menu Items

Button Function

Cursor Buttons Move cursor

Select menu item

Choose file numbers, values, etc.

OK Next menu level, store your entry, apply the changes

ESC Previous menu level, cancel your entry

Press To

• Go to next menu level.

• Store your entry.

• Apply the changes.

• Go to previous menu level.

• Cancel your entry since the last Ok.

• Press repeatedly to go to the main menu.

• Change menu item.

• Change value.

• Change position.

ESC

44612

44613

ESC

44614

44615

Cursor up or down

Apply or Enter

The symbol " " is used as the cursor.

to be 44612, 44613, 44614
