Allen-Bradley MicroLogix 1400 User Manual

Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 117
Using the LCD Chapter 5

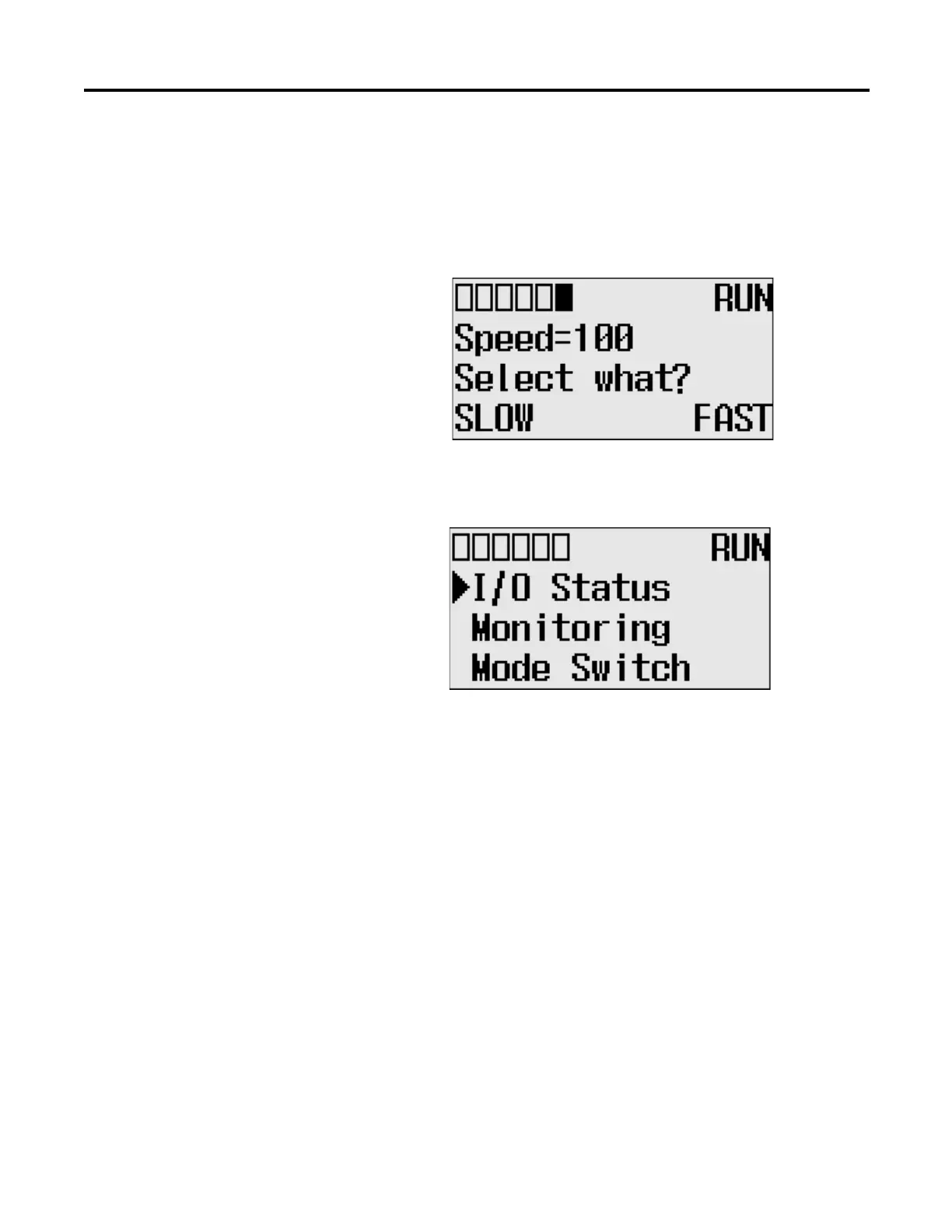

If a user defined screen is used in your application program, the LCD
screen is displayed, as shown below, according to the specific instructions
used in your program.
3. Hold down the ESC key more than 3 seconds to return to the Main
Menu screen, as shown below.
Configuring Advanced
Settings
With the Advanced Set menu, which is a sub-menu under the main menu of the
LCD, you can use the following features:
• changing Key In mode
• using communications toggle functionality
• configuring Ethernet Network Configuration
• using trim pots
• viewing system information
• viewing fault code
• saving/loading Communication EEPROM
• changing LCD contrast and backlight
• viewing/changing the Modbus RTU Slave Node address
You can access to the Advanced Set Menu screen, as shown below, by selecting
Advanced Set on the Main Menu screen.
C
OM
M
0
COMM
1
DCOMM BA
T
.
LO
U
-
DI
SP
COM
M
2

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
