Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 319
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

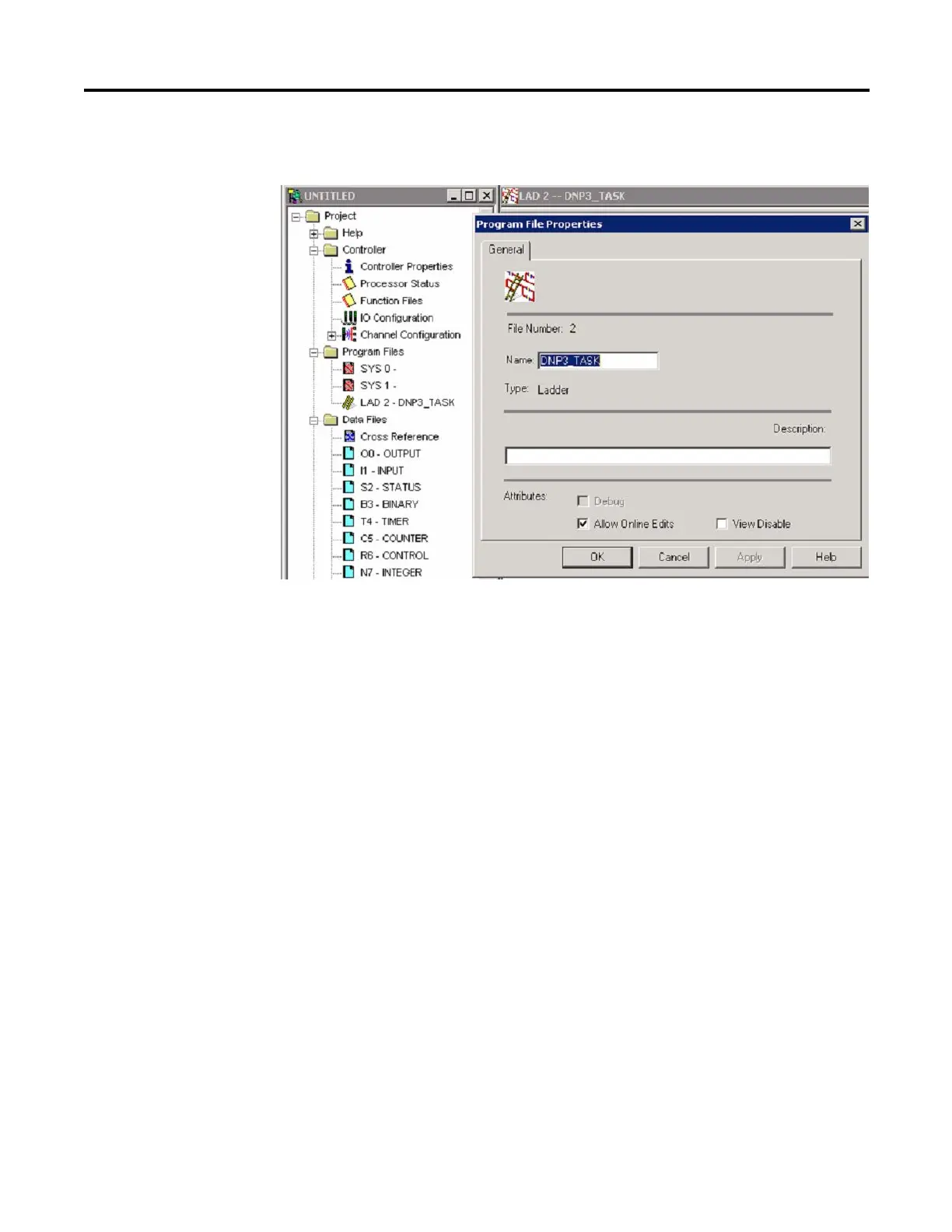

#2 in RSLogix 500/RSLogix Micro. In this example, the Application Identifier is
"DNP3_TASK".
If the qualifier code is 06h, the MicroLogix 1400 controller does not check the
string of the Application Identifier.
Initialize User Program
If MicroLogix 1400 receives the function code FC_INITIALIZE_APPL (16)
with the object Application Identifier (g90v1), it changes mode to Remote
Program. If the controller is in a fault mode, the MicroLogix 1400 clears the fault
before changing the mode to Remote Program.
Start User Program
If MicroLogix 1400 receives the function code FC_START_APPL (17) with the
object Application Identifier (g90v1), it changes its mode to Remote Run. If the
controller is in a fault mode, it sends the command with the function code
FC_INITIALIZE_APPL (16) before the command with the function code
FC_START_APPL (17).
Stop User Program
If MicroLogix 1400 receives the function code FC_STOP_APPL (18) with the
object Application Identifier (g90v1), it changes its mode to Remote Program. If
