Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 295
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

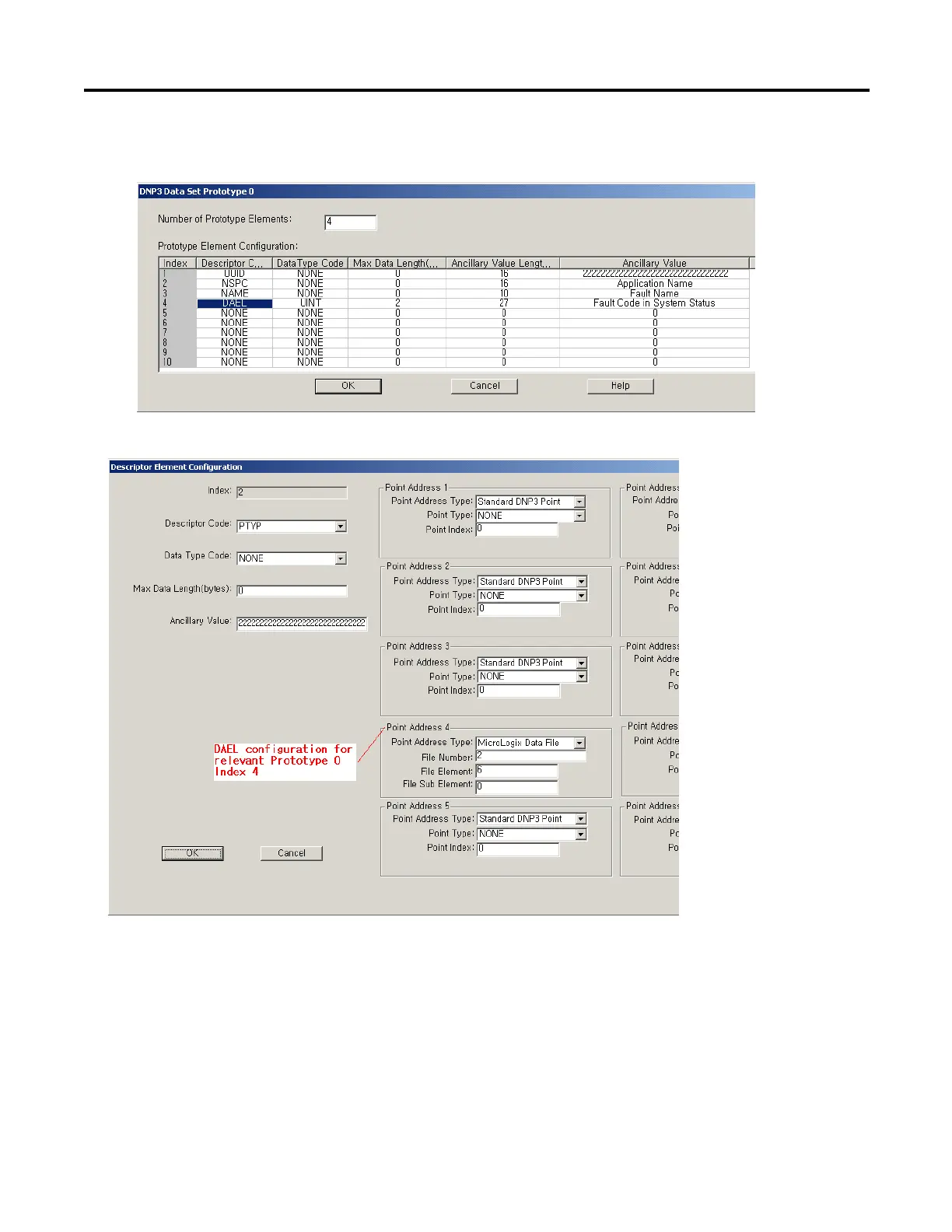

this, Point Address 4 in the PTYP element configuration of the Descriptor
should be configured properly.
Object Quality Flags
The object flag is composed of an 8 bit string for some DNP3 objects. The tables
below show Flag Descriptions for each object. The ONLINE, RESTART,
COMM_LOST, REMOTE_FORCED and LOCAL_FORCED flags are
common to all object group types that contain flags.
