Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

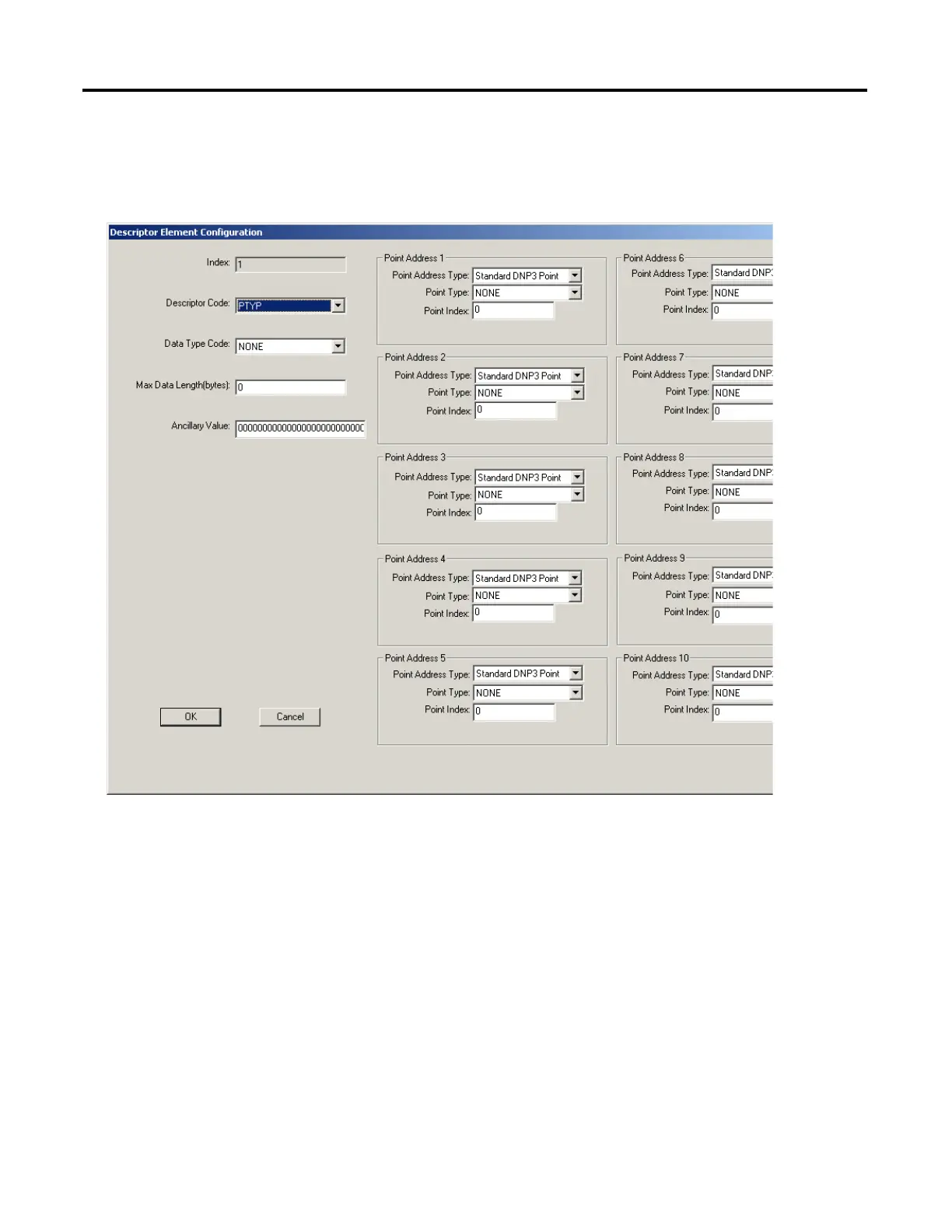

When the Descriptor Code is selected as PTYP, the Point Addressing parameters
for the Descriptor element are replaced by 10 Point Addressing parameters.
These should be configured in the same order of the DAEL elements in the
relevant Prototypes.
For instance, if Prototype 0 includes a Namespace at Index 2 and Name at Index
3, then the first DAEL in the Prototype 0 is at Index 4. The Prototype DAEL at
Index 4 matches Point Address 4 in the PTYP element configuration. Because of
