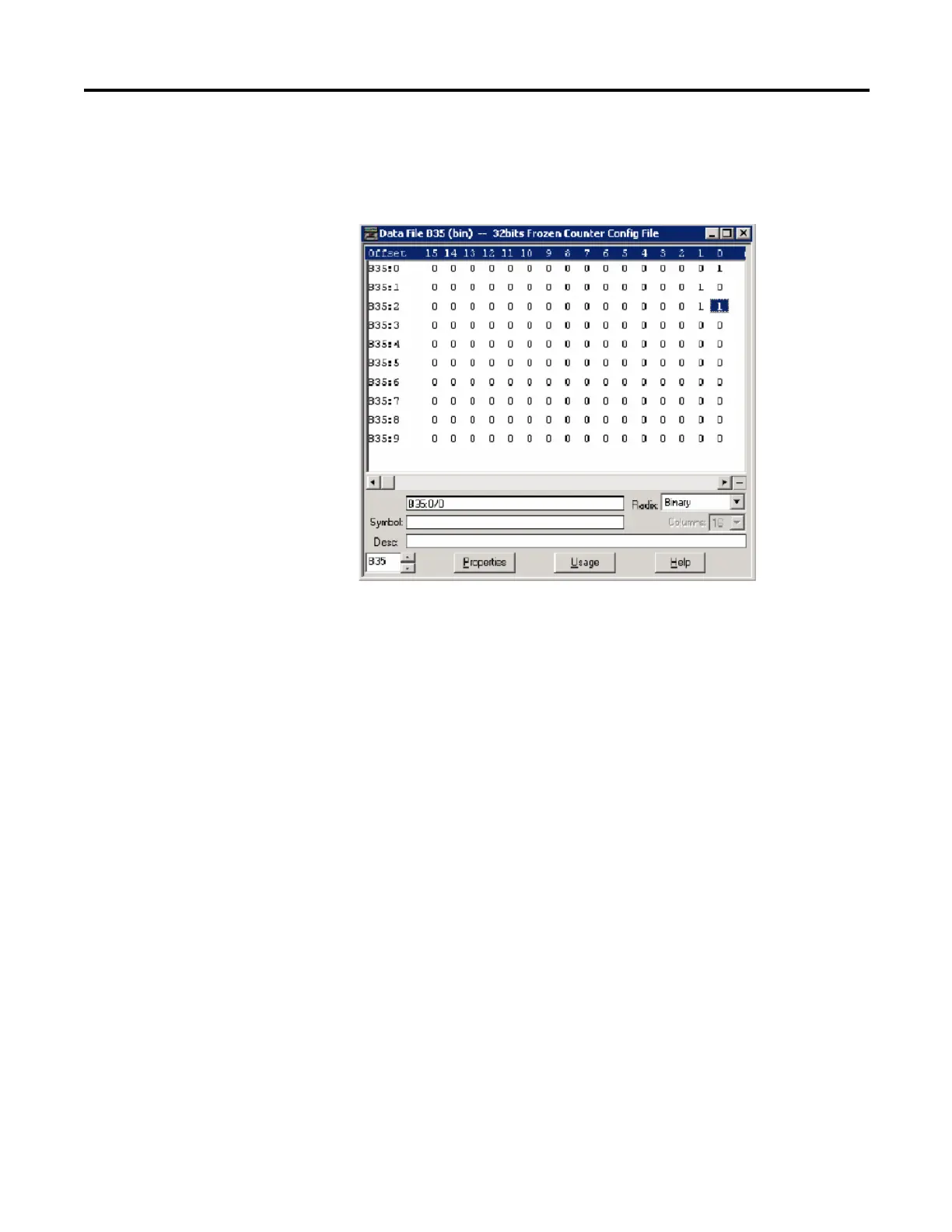

For 32-bit Frozen Counter Config File, Class Level of Index 10 is 1(B35:0/0 and
B35:0/1), Class Level of Index 11 is 2(B35:1/0 and B35:1/1), Class Level of
Index 12 is 3(B35:2/0 and B35:2/1), and Class Level of other Indexes are 0.
DNP3 Analog Input Object
The supported object group and variations are listed in this section. The
MicroLogix 1400 responds with the default group and variation when the DNP3
Master requests to read the object with Any variation.
Analog Input Static Objects:
• g30v0 - Analog Input - Any Variations
• g30v1 - Analog Input - 32-bit with flag
• g30v2 - Analog Input - 16-bit with flag
• g30v3 - Analog Input - 32-bit without flag (default)
• g30v4 - Analog Input - 16-bit without flag (default)
• g30v5 - Analog Input - Single-prec flt-pt with flag (default)
Analog Input Event Objects:
• g32v0 - Analog Input Event - Any Variation
• g32v1 - Analog Input Event - 32-bit without time (default)
• g32v2 - Analog Input Event - 16-bit without time (default)
• g32v3 - Analog Input Event - 32-bit with time
• g32v4 - Analog Input Event - 16-bit with time
• g32v5 - Analog Input Event - Single-prec flt-pt without time (default)
• g32v7 - Analog Input Event - Single-prec flt-pt with time

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
