280 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

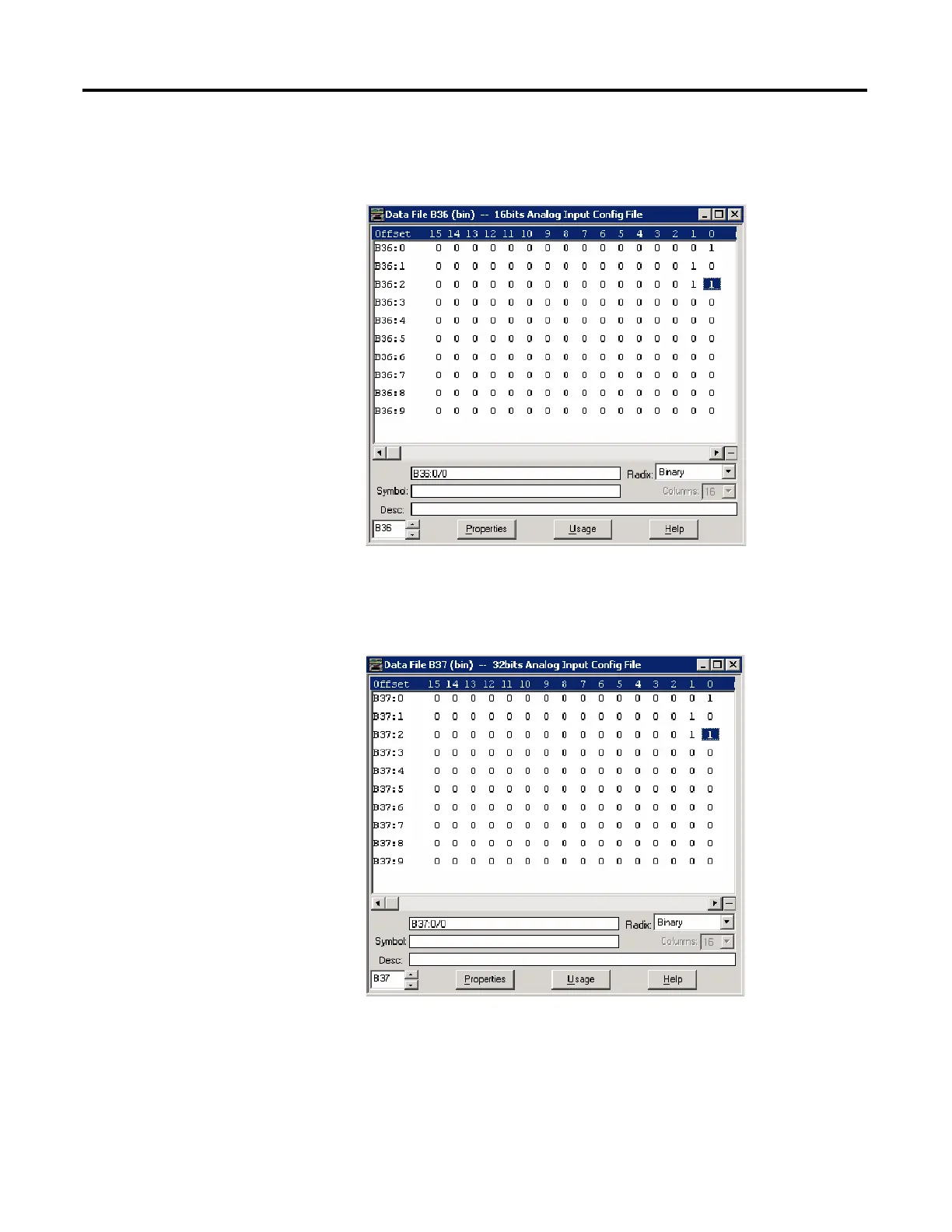

Class Level of Index 2 is 3(B36:2/0 and B36:2/1), and Class Level of other
Indexes are 0.
For a 32-bit Analog Input Config File, Class Level of Index 10 is 1(B37:0/0 and
B37:0/1), Class Level of Index 11 is 2(B37:1/0 and B37:1/1), Class Level of
Index 12 is 3(B37:2/0 and B37:2/1), and Class Level of other Indexes are 0.
For Short Floating Point Analog Input Config File, Class Level of Index 20 is
1(B38:0/0 and B38:0/1), Class Level of Index 21 is 2(B38:1/0 and B38:1/1),
