Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 279
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

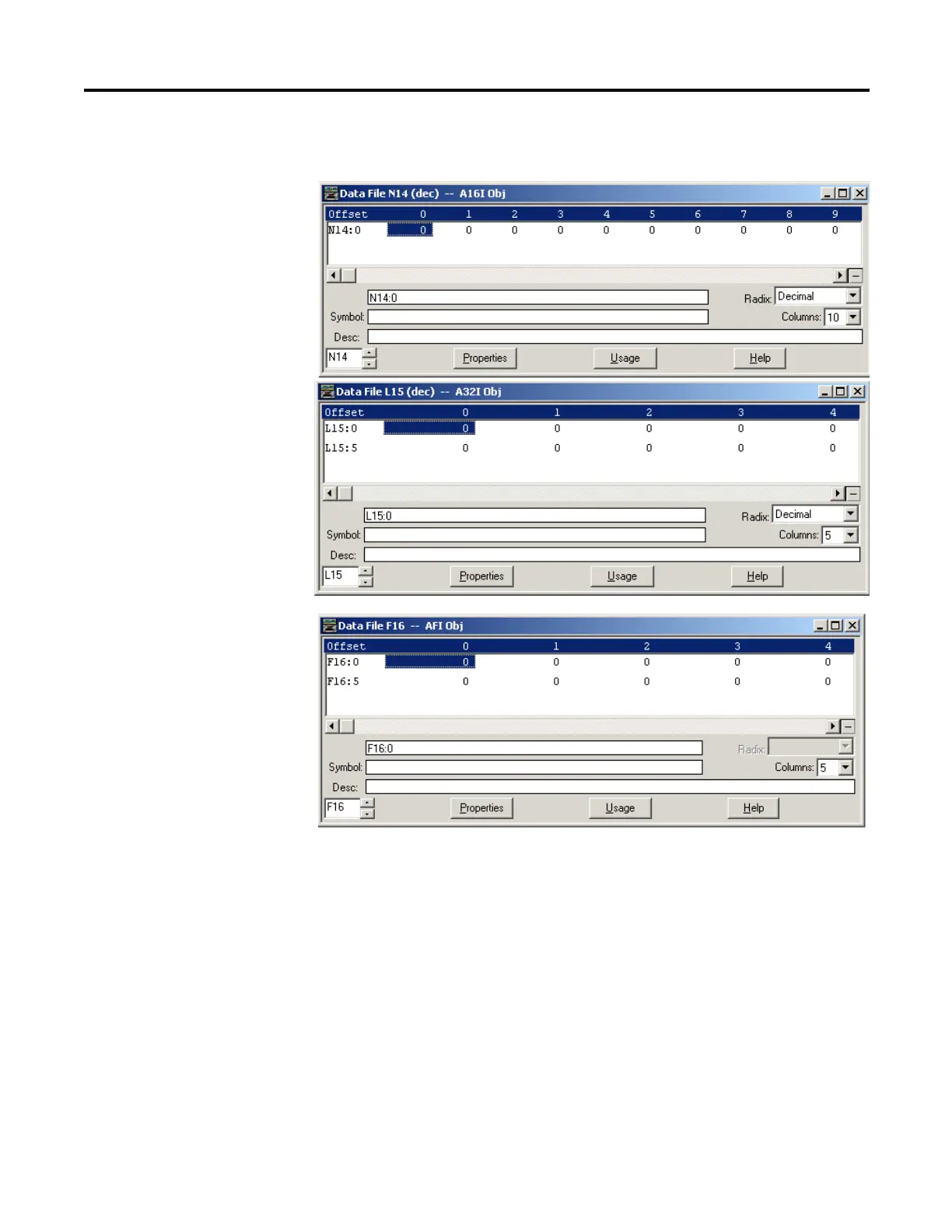

indexes are configured. Index 0 of the Analog Input Object is N14:0, Index 10 is
L15:0, Index 20 is F16:0 and Index 29 is F16:9.
As an example, an Analog Input Config File is shown below. These files have 10
elements each.
B36:0/0 and B36:0/1 can be configured for Class Level 0, 1, 2 or 3 for DNP3
Index 0 of the 16 bits Analog Input Object File.
B36:1/0 and B36:1/1 can be configured for Class Level for DNP3 Index 1 of the
Analog Input Object File. Default Class Level is 0. Any other bits are reserved.
In the example below, for 16-bit Analog Input Config File, Class Level of Index 0
is 1(B36:0/0 and B36:0/1), Class Level of Index 1 is 2(B36:1/0 and B36:1/1),
