Allen-Bradley MicroLogix 1400 User Manual

Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 119
Using the LCD Chapter 5

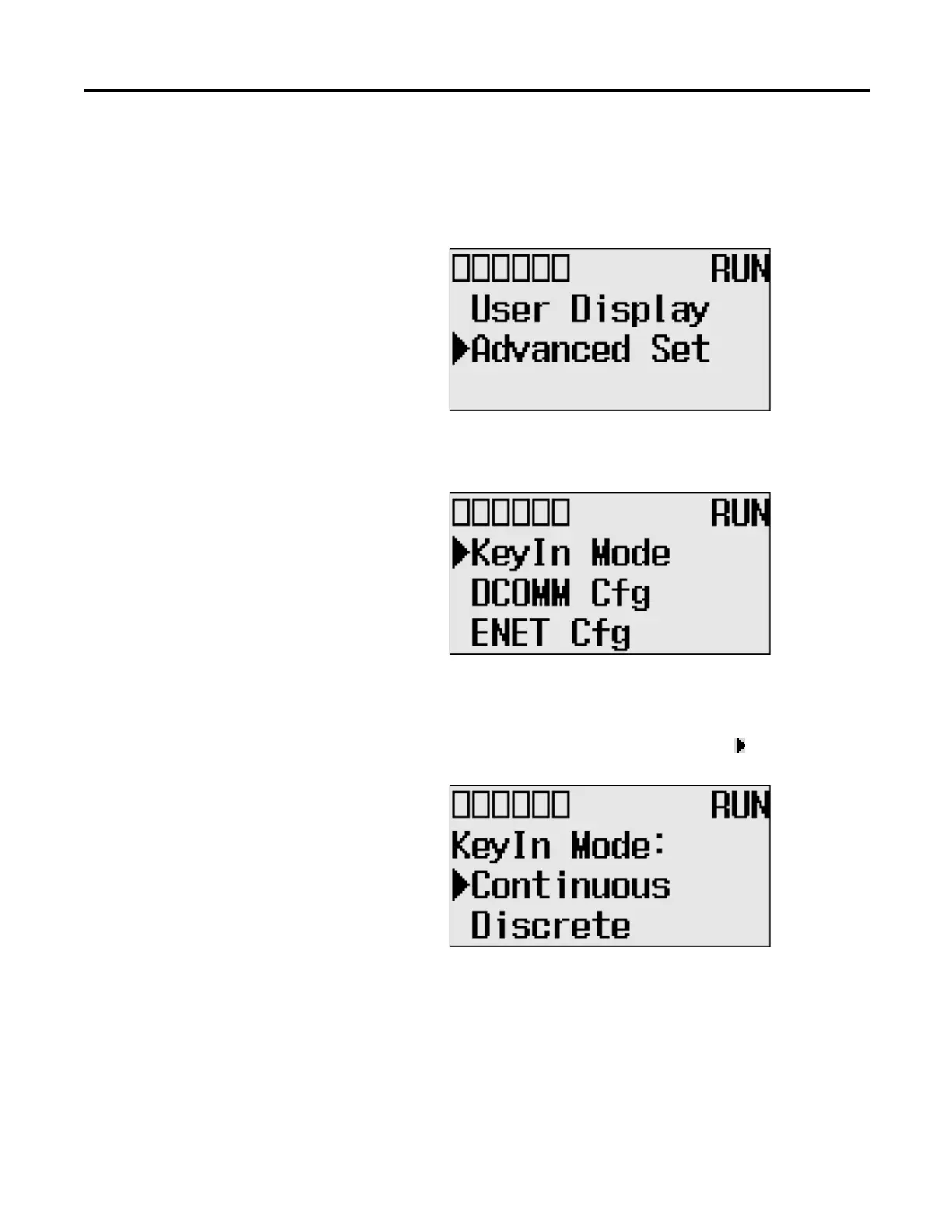

1. On the Main Menu screen, select Advance Set by using the Up and Down
keys on the LCD keypad. If the menu items shown in the figure below are
not displayed on the Main Menu screen, you need to scroll down the
screen by pressing the Down key.
2. Then, press the OK key on the LCD keypad. The Advanced Settings
Menu screen is displayed.
3. Select KeyIn Mode using the Up and Down keys, and then press the OK
key.
4. The Key In Mode screen is displayed. The current mode, Continuous in
this example, is selected marked up with the symbol “ ”.

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
