Using the LCD Chapter 5

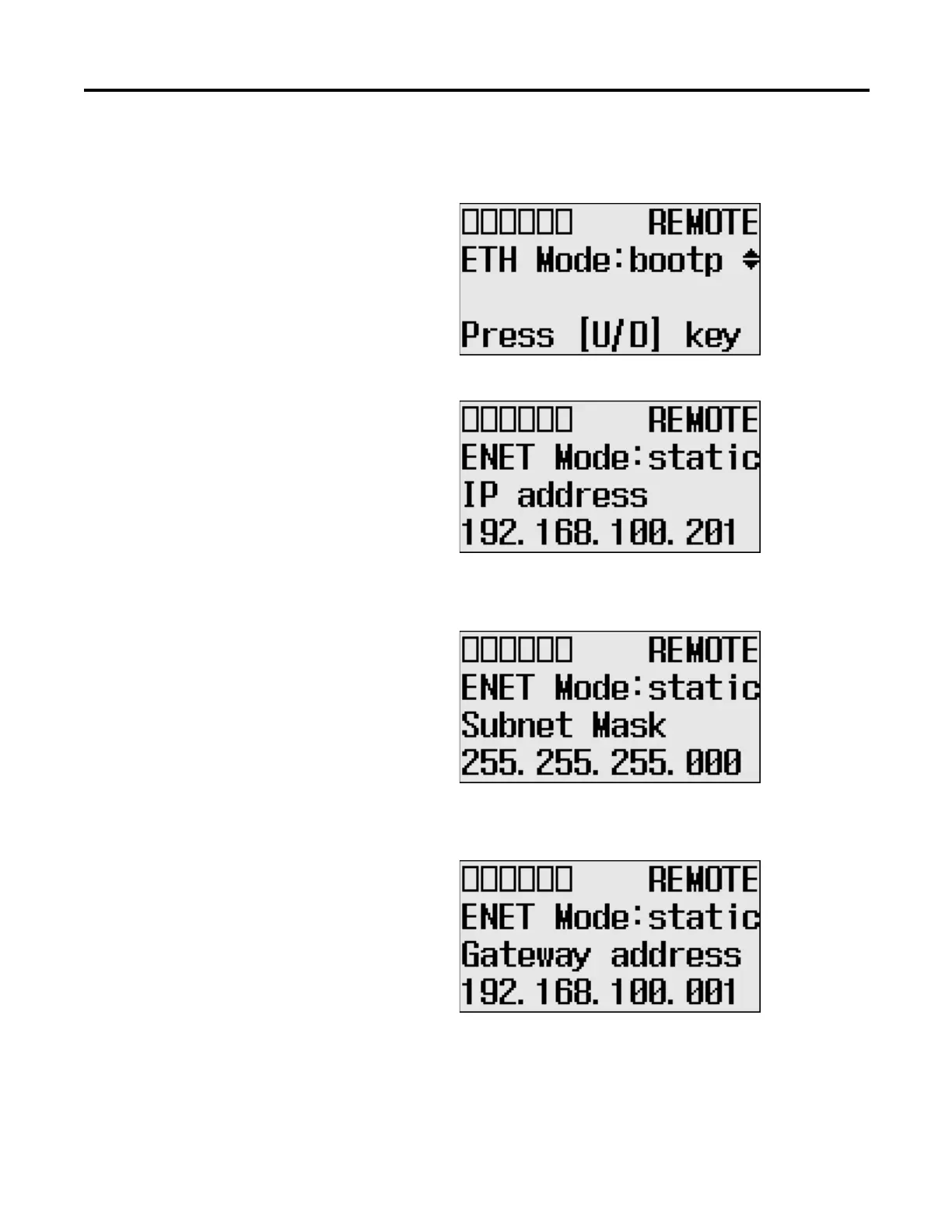

7. If the password is correct, the Ethernet network type screen is displayed as
below. Press Up or Down key to select the appropriate Ethernet mode.
If you press the OK key at the static mode, the IP address flashes.
8. After configuring the IP address, press the OK key. The Subnet Mask
screen is displayed.
9. After configuring the Subnet Mask, press the OK key. The Gateway
address is displayed.
