Allen-Bradley MicroLogix 1400 User Manual

Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 127
Using the LCD Chapter 5

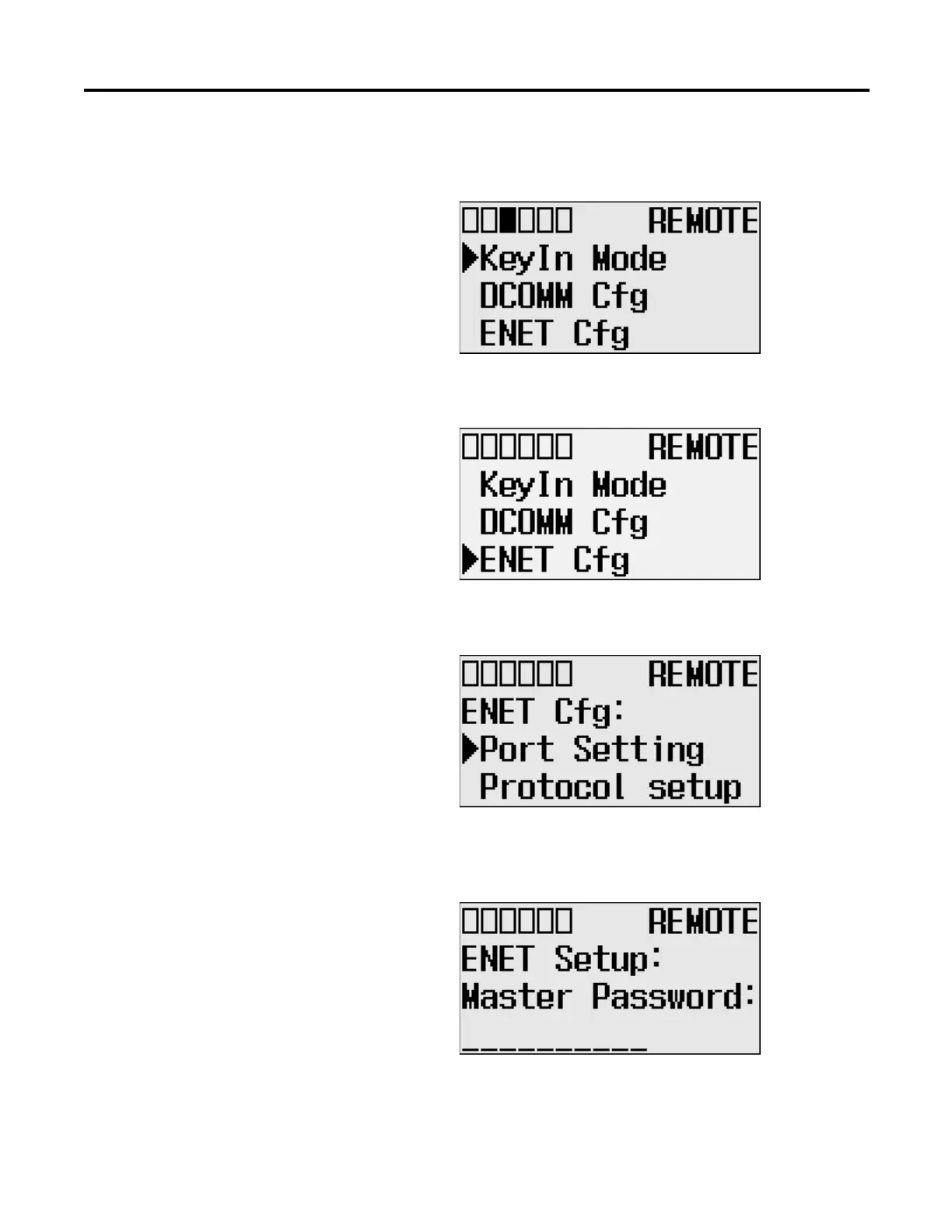

2. Press the OK key on the LCD keypad. The Advanced Settings Menu
screen is displayed.
3. If ENET Cfg is selected, press the OK key. If not, select ENET Cfg using
the Up and Down keys, and then press the OK key.
4. If Port Setting is selected, press the OK key, If not, select Port Setting using
the Up and Down keys, and then press the OK key.
5. The password screen is displayed. Press Up, Down, Left and Right keys to
enter Master password with maximum 10 digits. In this example, the
current Master password is allocated as "1234".
After entering the Master password, press the OK key on the LCD keypad.

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
