Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 197

Using ControlFLASH to Upgrade Your Operating System Appendix D

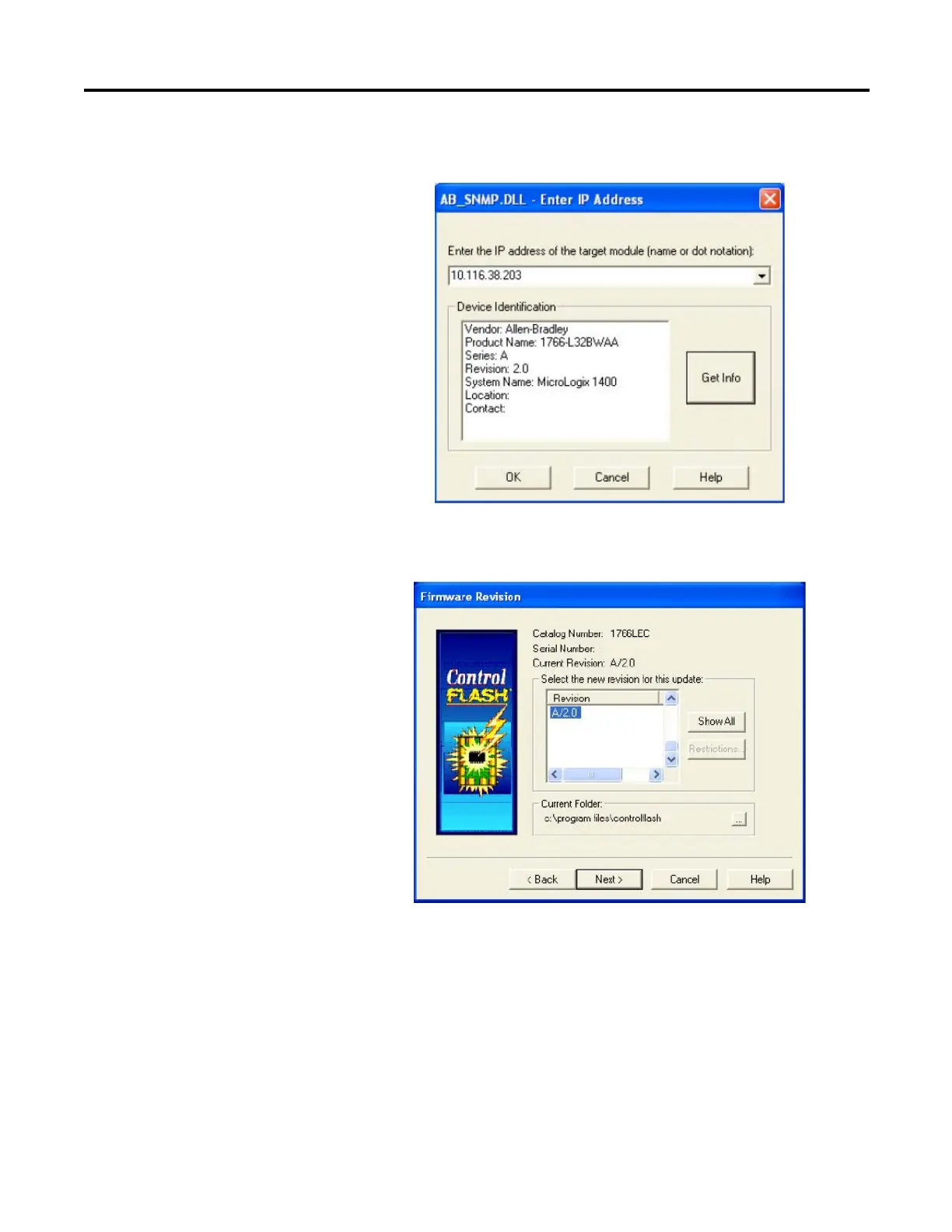

9. Click the OK button.

10. Select the appropriate revision from the Firmware Revision dialog box and

click the Next button.
