Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 225

MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

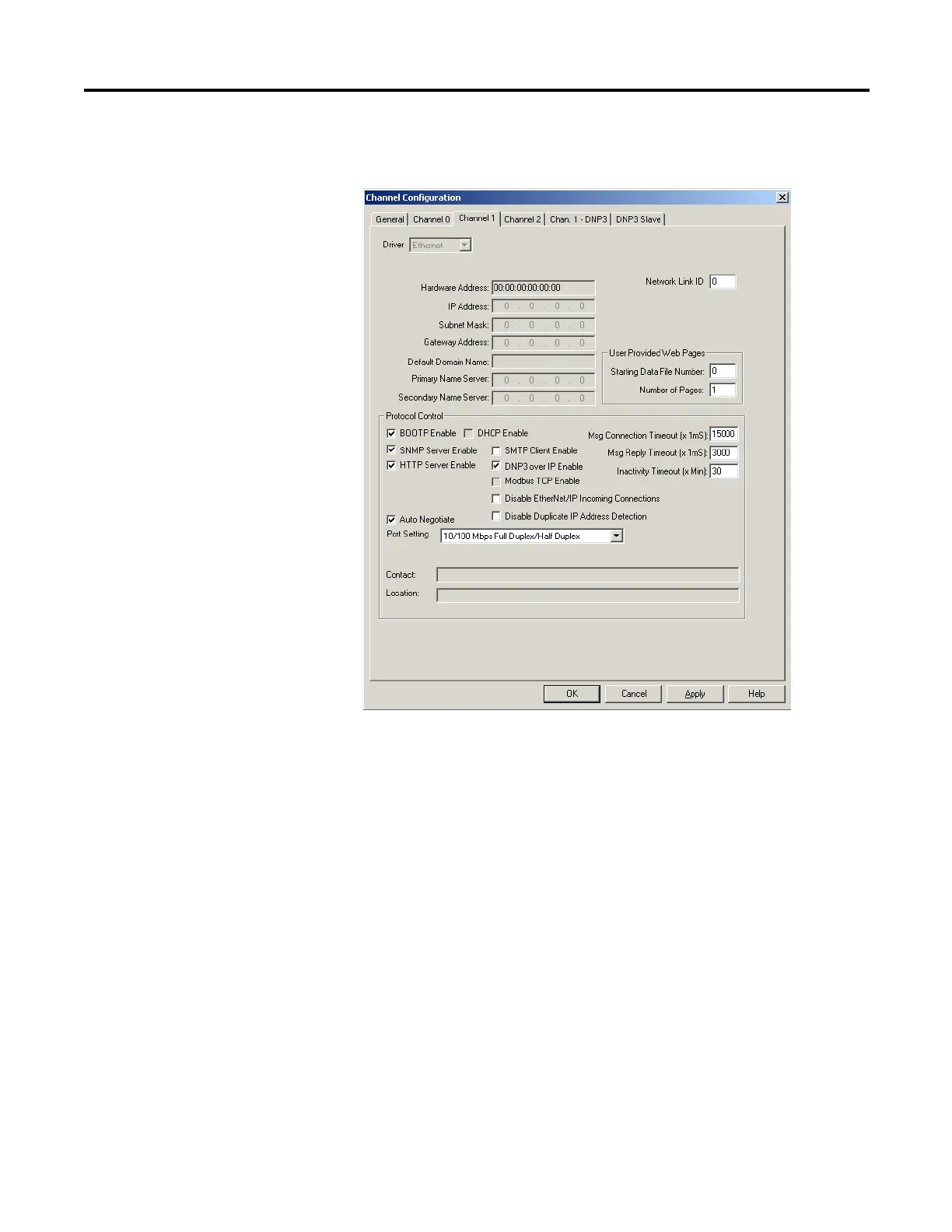

Unlike serial port configuration, cycle power to the controller after downloading

the Ethernet port configuration to enable the DNP3 over IP feature.
