Allen-Bradley MicroLogix 1400 User Manual

Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 269
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

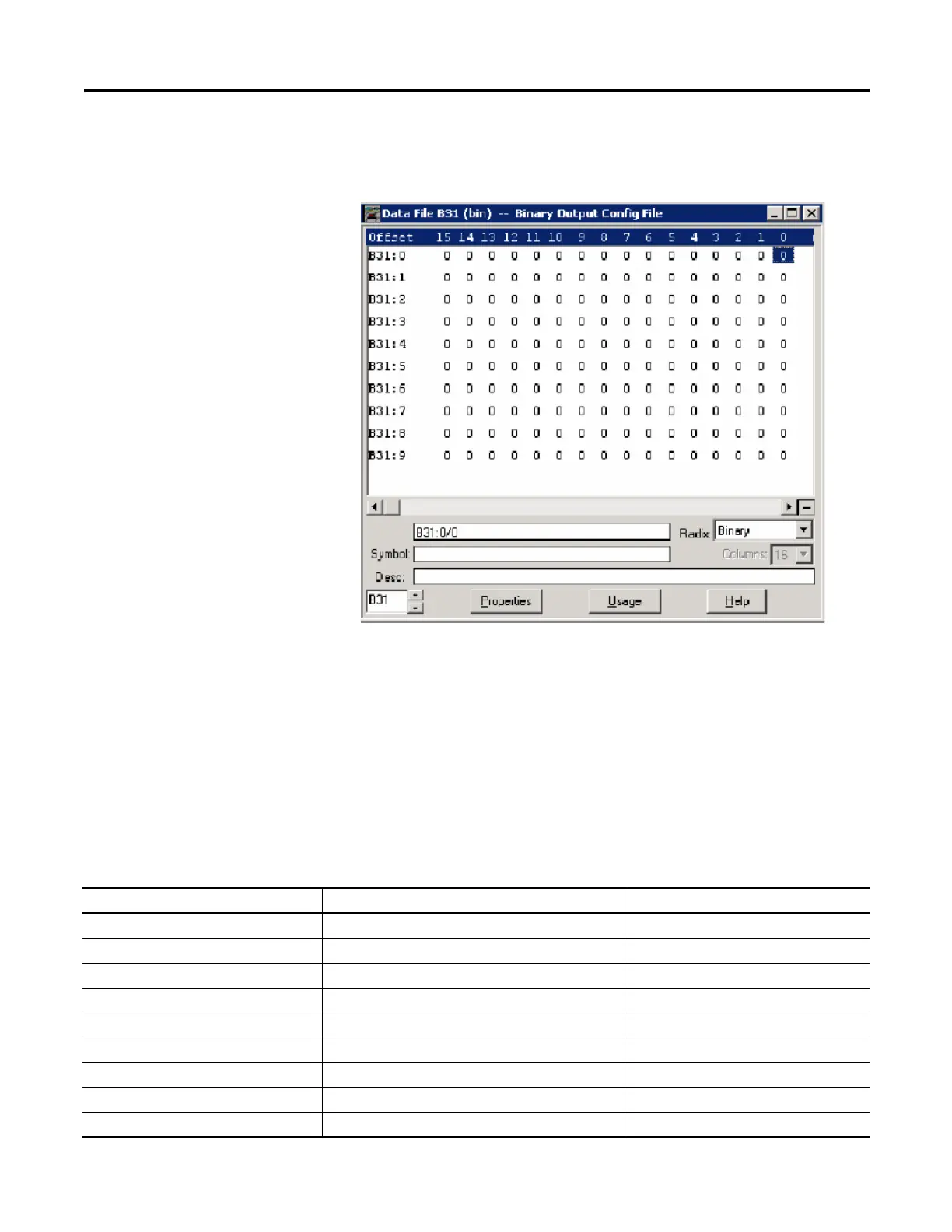

If this bit is set, the Online bit in the status flag of each Binary Output points is
set when you read Binary Output Status objects.
Binary Command - Control relay output block (CROB)
The MicroLogix 1400 has three control models for Binary Output Control.
They are Activation model, Complementary latch model and Complementary
two-output model.
For the Complementary two-output model, two bits are required to control this
model in the Binary output object. The point index is different than in the
Activation or Complementary latch model. The point index varies as shown in
the table below. The maximum number of Binary Output index for
Complementary two-output model is 2048.
Binary Output Database Index Activation model or Complementary latch model Complementary two-output model
0 BO Index 0 BO Close Index 0
1 BO Index 1 BO Trip Index 0
2 BO Index 2 BO Close Index 1
3 BO Index 3 BO Trip Index 1
4 BO Index 4 BO Close Index 2
5 BO Index 5 BO Trip Index 2
…… …
4094 BO Index 4094 BO Close Index 2047
4095 BO Index 4095 BO Trip Index 2047

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
