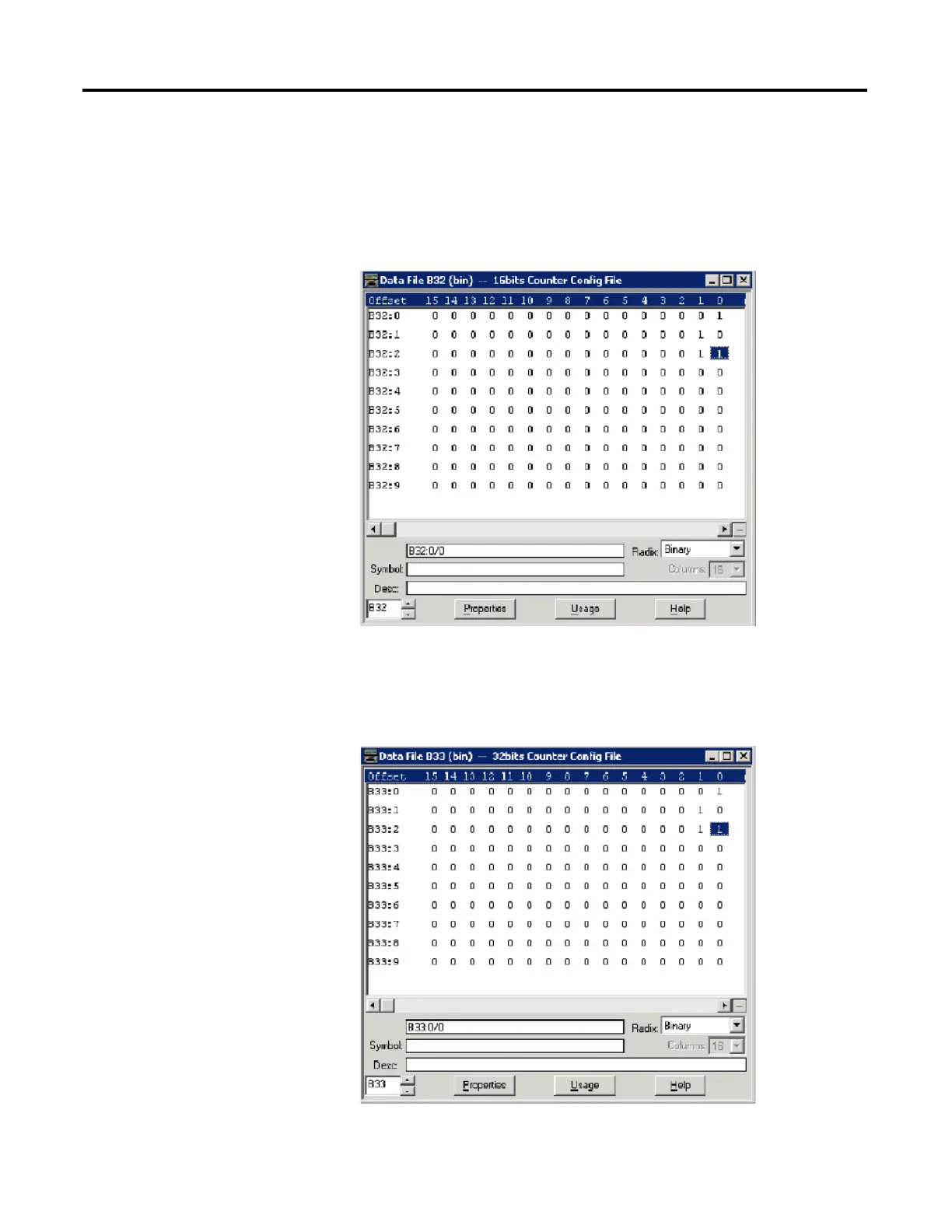

or 3 for DNP3 Index 0 of the 16 bits Counter Object File. B32:1/0 and B32:1/1
can be configured for Class Level for DNP3 Index 1 of the Counter Object File.
Default Class Level is 0. Any other bits are reserved. So, in the example below, for
16-bit Counter Config File, Class Level of Index 0 is 1(B32:0/0 and B32:0/1),
Class Level of Index 1 is 2(B32:1/0 and B32:1/1), Class Level of Index 2 is
3(B32:2/0 and B32:2/1), and Class Level of other Indexes are 0.
For a 32-bit Counter Config File, Class Level of Index 10 is 1(B33:0/0 and
B33:0/1), Class Level of Index 11 is 2(B33:1/0 and B33:1/1), Class Level of
Index 12 is 3(B33:2/0 and B33:2/1), and Class Level of other Indexes are 0.
