Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 289
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F

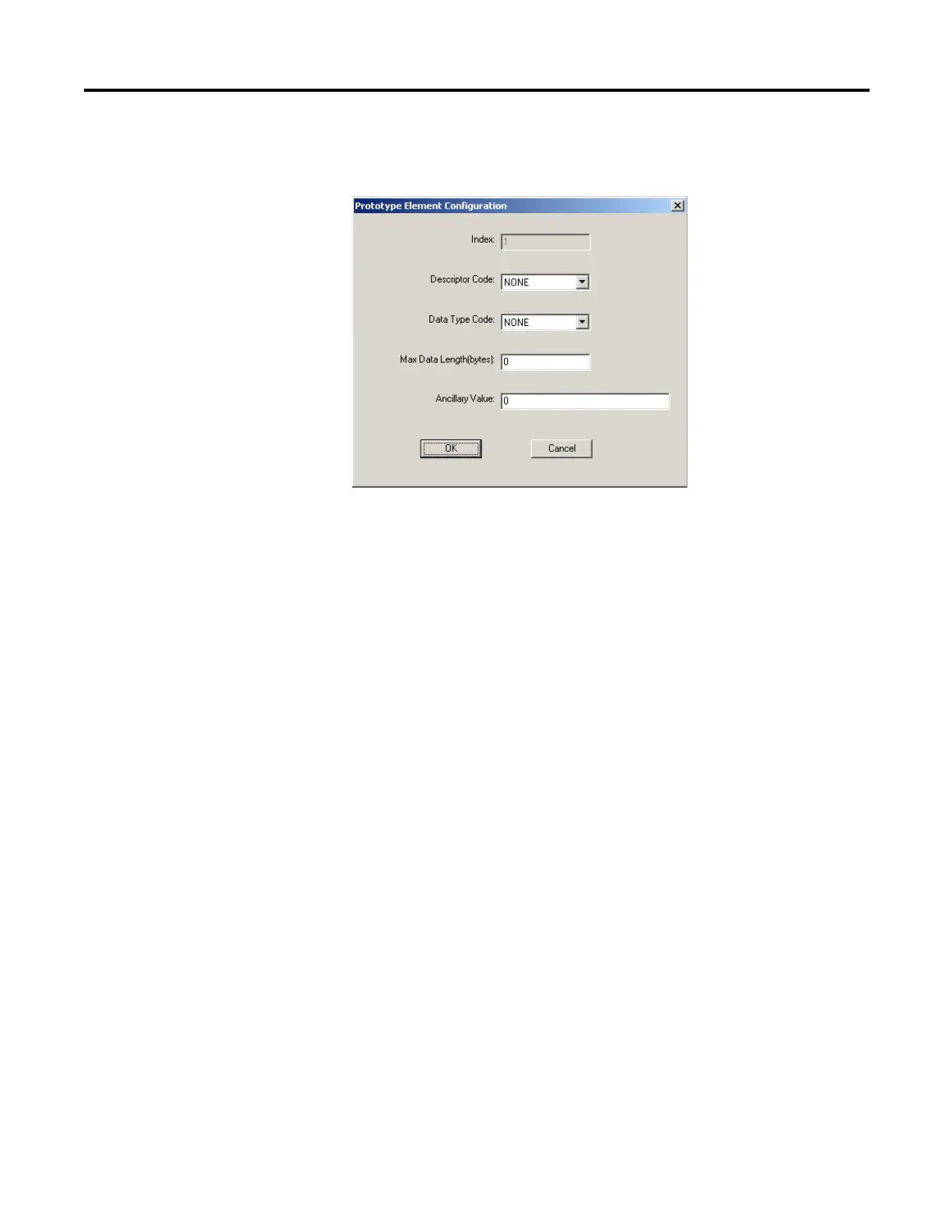

Prototype Element Configuration: Each Prototypes element is configured in this
configuration. Double-click an element to edit it.
Descriptor Code: UUID for element 1. NSPC/NAME/DAEL for element 2 or
higher.
Data Type Code: NONE for element 1.
NONE/VSTR/UINT/INT/FLT/OSTR/BSTR/TIME for element 2 or
higher.
Max Data Length (bytes): 0 for element 1. 0…255 for element 2 or higher.
Ancillary Value: Binary Array in hexadecimal for element 1. ASCII strings for
element 2 or higher. Maximum 32 bytes.
