292 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

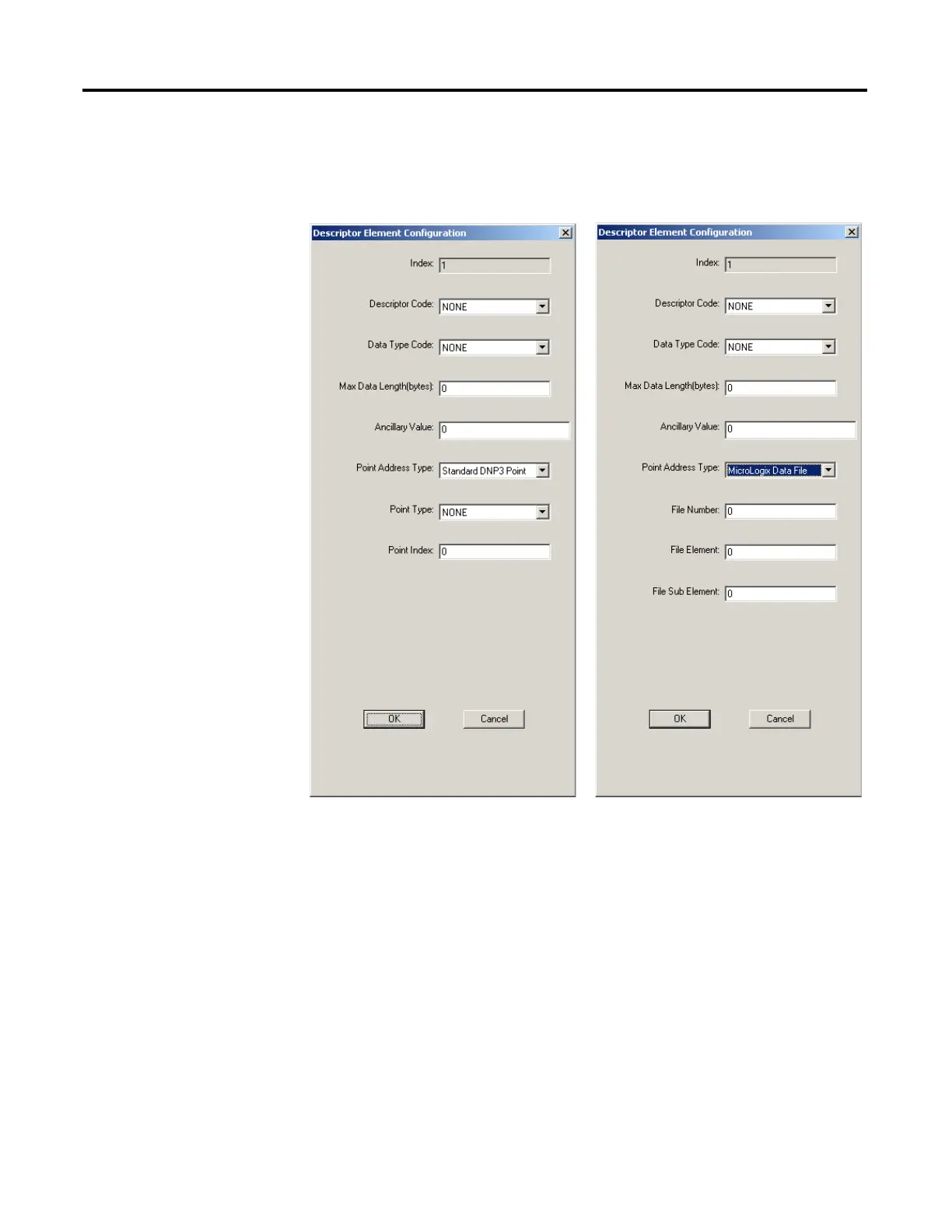

Descriptor Element Configuration: Each Descriptors element is configured in
this here. Double-click each element to edit it.
Descriptor Code: NONE, NAME, DAEL, PTYP
Data Type Code: NONE, VSTR, UINT, INT, FLT, OSTR, BSTR, TIME
Max Data Length (bytes): 0…255
Ancillary Value: Any string. This can be a binary array or ASCII string, up to 16
words.
Point Addressing under Descriptor Element Configuration: Data Set value for
each Data Set element is configured by:
• Point Address Type
• Point Type
• Point Index
