304 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

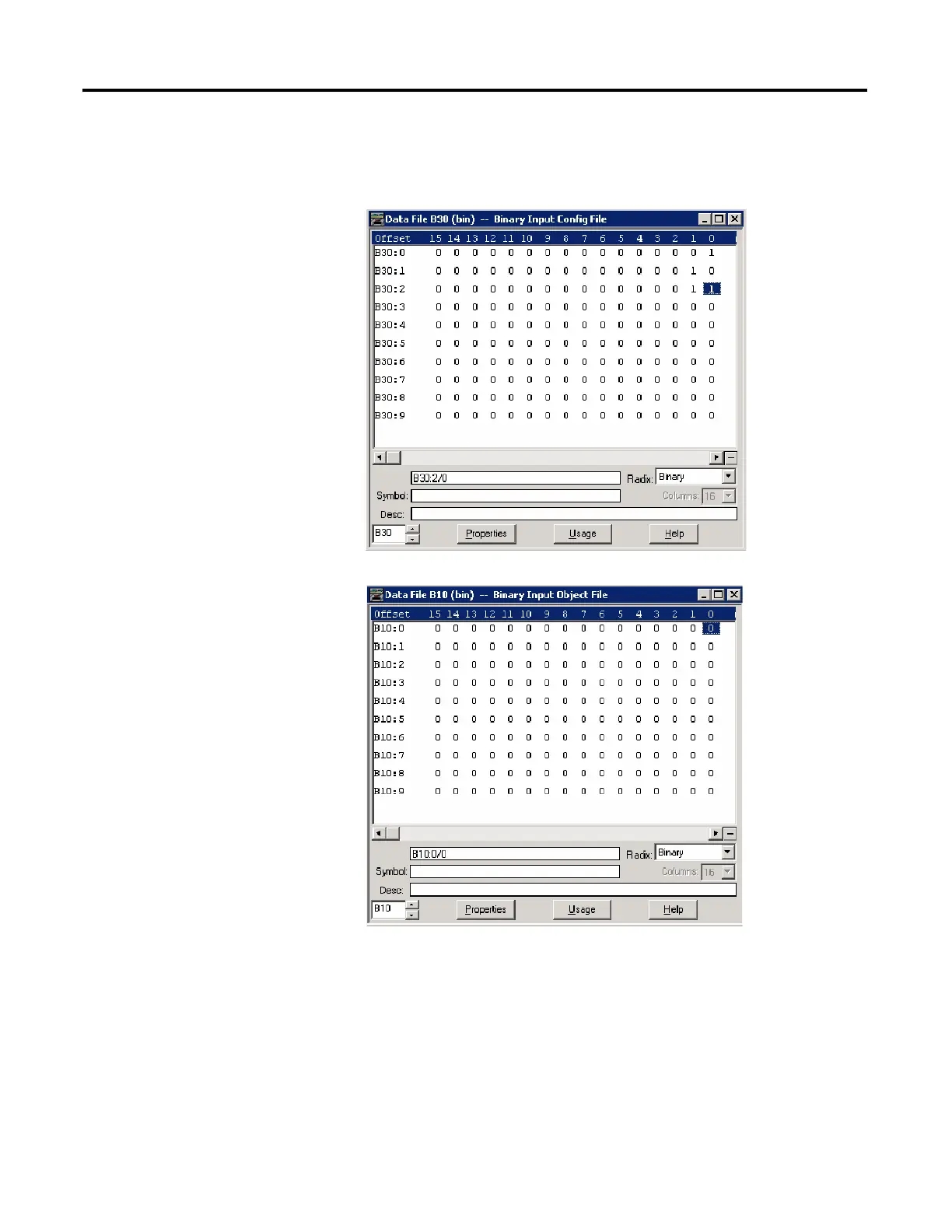

there are any changes for the points(B10:0, B10:1 or B10:2). For any other Binary
Input points, the events will not be generated.
In the same manner, this 16-bit Analog Input Object File has bit 1/bit 0 of B36:0,
B36:1 and B36:2 configured to 0/1, 1/0 and 1/1 respectively. The event for the
index 0 of 16-bit Analog Input Object will be generated as a Class 1 event, the
event for the index 1 as a Class 2 event, and the event for the index 2 as a Class 3
