Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 309
MicroLogix 1400 Distributed Network Protocol (DNP3) Appendix F
The example below shows how to initiate and send the Unsolicited Response.

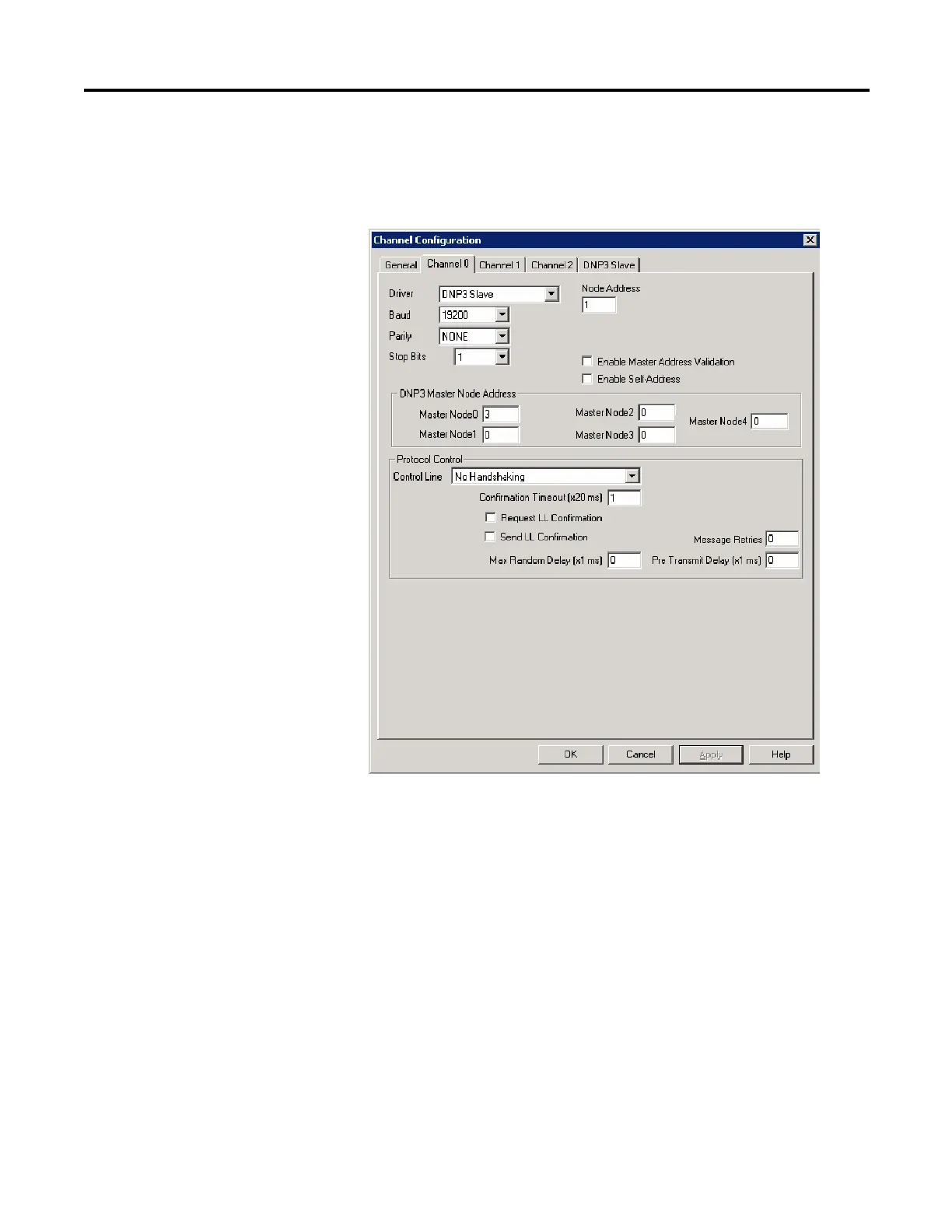

Master Node0 in Channel 0 Configuration tab indicates that the Unsolicited
Response is reported to the Master with the node address 3.
The parameter Channel for Unsolicited Response in the DNP3 Slave
Configuration tab indicates that the Unsolicited Response is reported via
Channel 0 only. In this example, Initial Unsolicited Response is sent on startup
